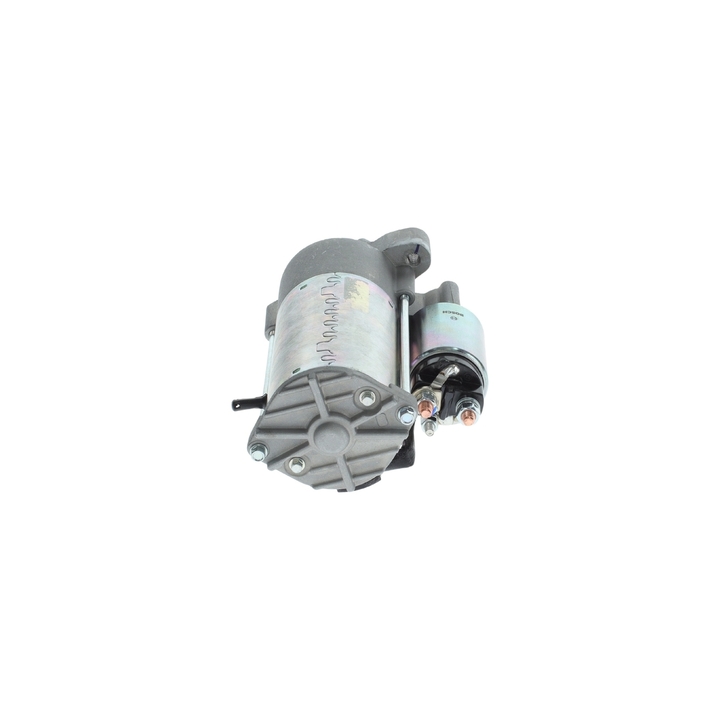

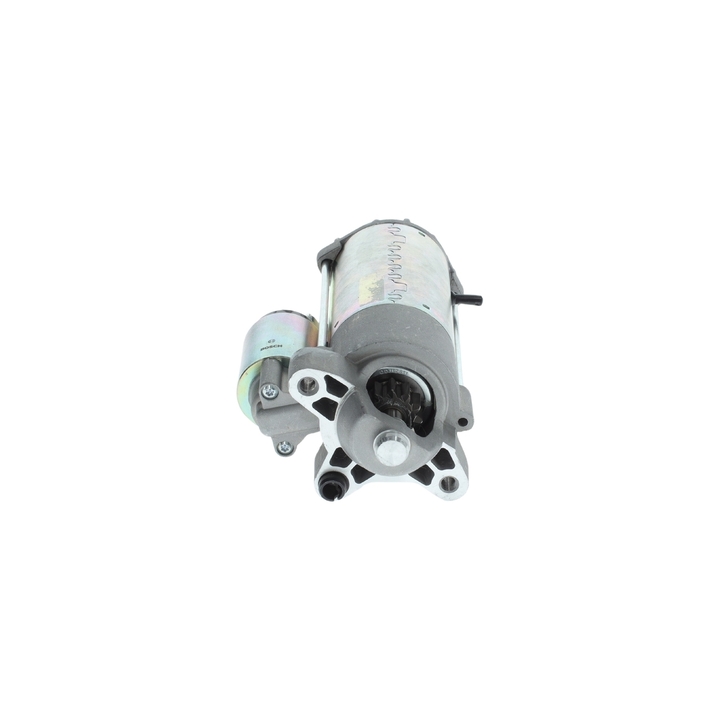

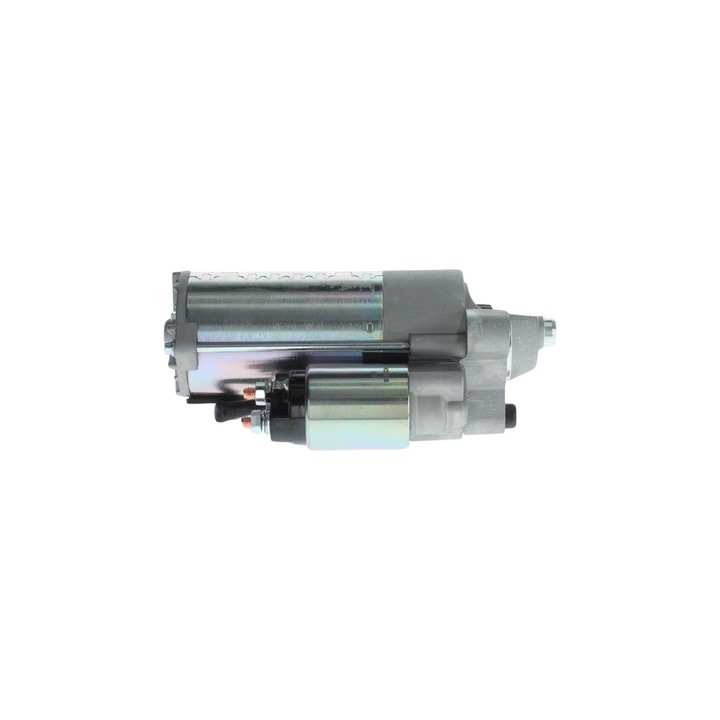

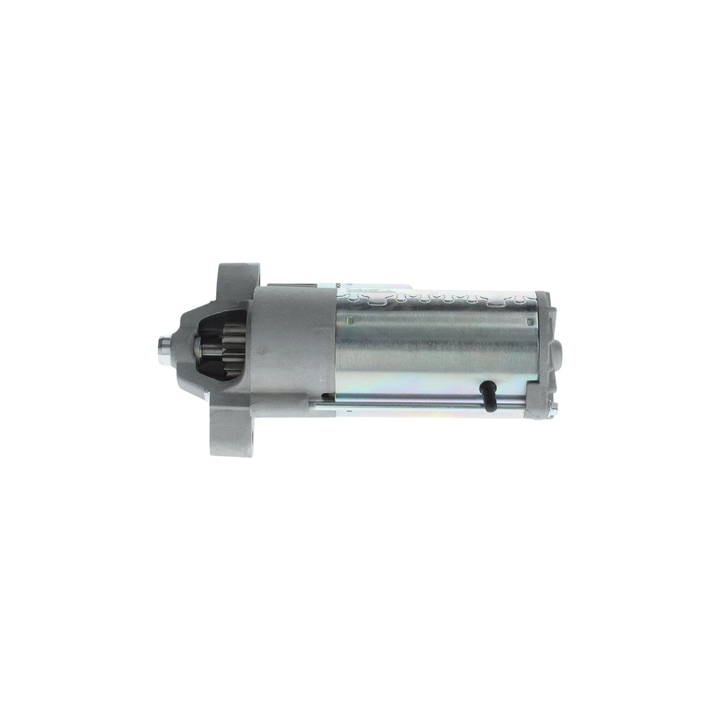

1 986 S01 010 - Starter
Dimensions and size
| Length | 243 | mm |
Specifications
| Voltage | 12 V |
| Rated Power | 2.2 kW |
| Number of mounting bores | 0 |
| Number of threaded holes | 3 |
| Number of Teeth | 11 |
| Clamp | 50 |
| Clamp | 30 |
| Flange Diameter | 63 mm |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position | -5.8 mm |
| Starter Type | Self-supporting |
| Thread Size | M10X1,5 |
| Thread Size 1 | M10X1,5 |
| Thread Size 2 | M10X1,5 |
| Position/Degree | links |
| Mounting Angle | 39 degrees |
| Jaw opening angle measurement | 49 Degree |
| Fastening hole angle measurement | 39 Degree |
Shipping Details
| Weight | 5.399 Kg |
| Customs Code | 851140 |
| Country of Origin | China |
€124.21
- Price Includes VAT 0%
- Dispatch on next business day
- Check shipping rates
- Easy returns
Shipping rates
Alternatives
€228.05
Dispatch on next business day
€137.76
dispatch in 28 business days
