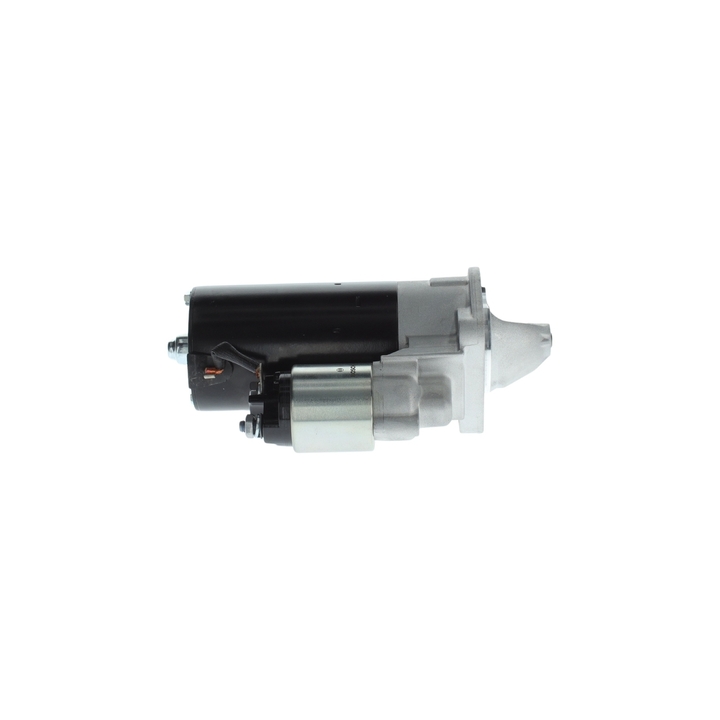

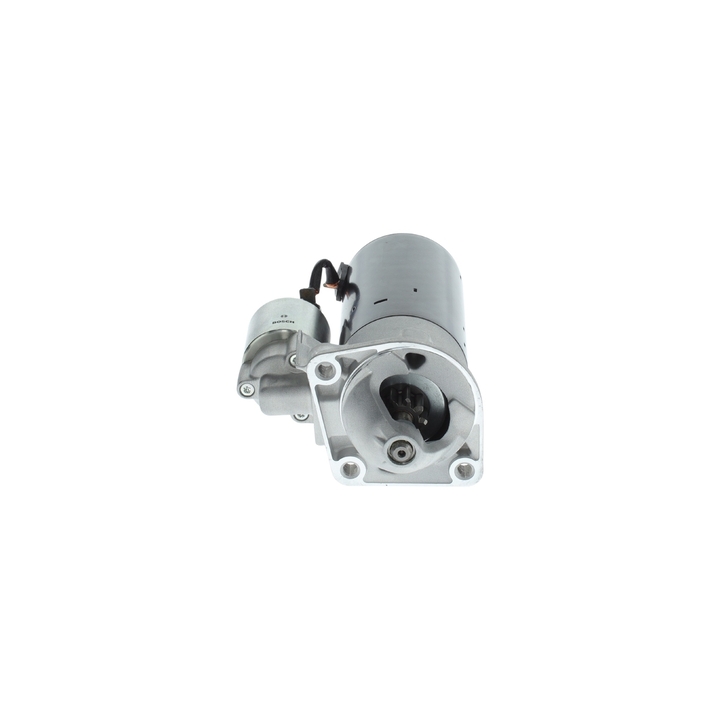

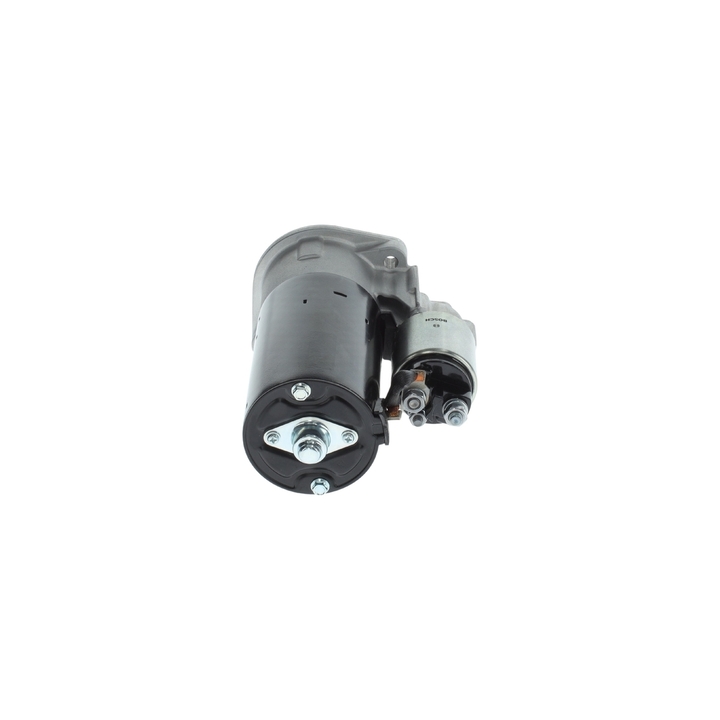

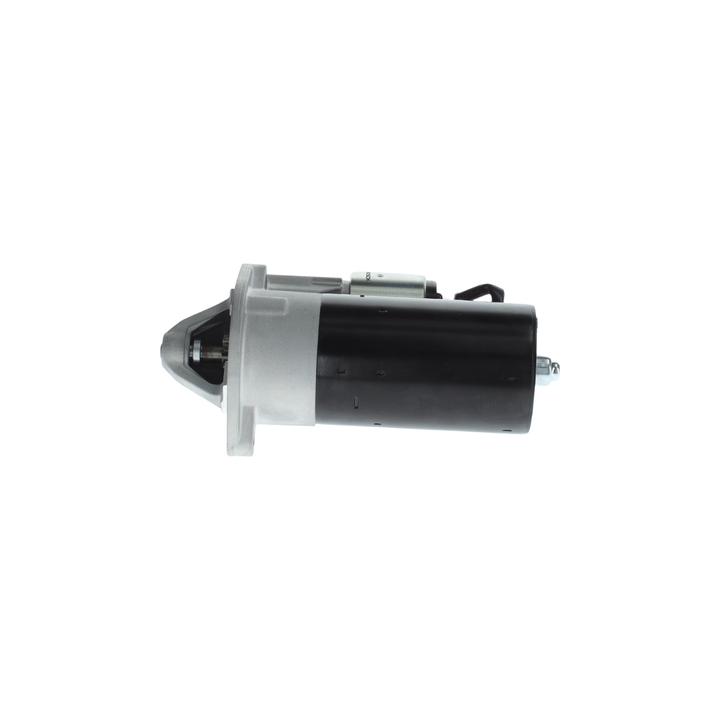

1 986 S01 038 - Starter
Dimensions and size
| Length | 240 | mm |
Specifications
| Voltage | 12 V |
| Rated Power | 2 kW |
| Number of mounting bores | 0 |
| Number of threaded holes | 3 |
| Number of Teeth | 9 |
| Clamp | 50 |
| Clamp | 30 |
| Flange Diameter | 76.2 mm |
| Rotation Direction | Clockwise rotation |
| Pinion Rest Position | 6 mm |
| Starter Type | Self-supporting |
| Thread Size | M10X1,5 |
| Thread Size 1 | M10X1,5 |
| Thread Size 2 | M10X1,5 |
| Position/Degree | links |
| Mounting Angle | 48 degrees |
| Jaw opening angle measurement | 45 Degree |
| Fastening hole angle measurement | 48 Degree |
Shipping Details
| Weight | 5.065 Kg |
| Customs Code | 851140 |
| Country of Origin | China |
€146.50
- Price Includes VAT 0%
- Dispatch on next business day
- Check shipping rates
- Easy returns
Shipping rates
Alternatives
€261.44
Dispatch on next business day
BOSCH ® 0 001 109 389
Starter
No longer deliverable by the manufacturer
Product has been replaced by:
1 986 S01 038
€125.20
dispatch in 28 business days
