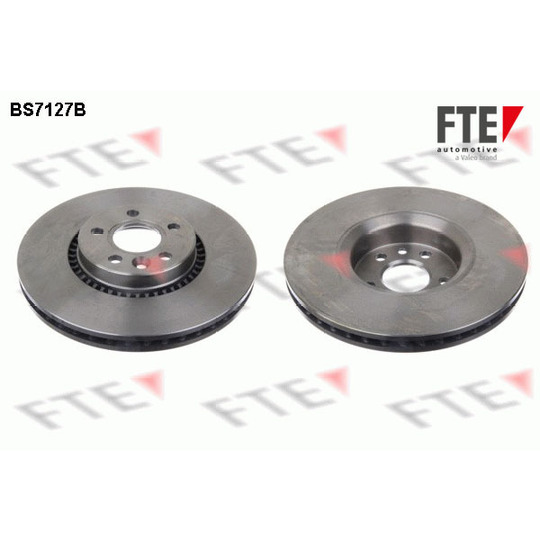

BS7127B - Brake Disc

No longer deliverable by the manufacturer

This is the one single brake disc. If you plan to change discs on the entire axle then you should buy two products.

Dimensions and size

Brake Disc Thickness	28	mm
Centering Diameter	63.4	mm
Height	52.3	mm
Minimum thickness	26	mm
Outer Diameter	316	mm

Specifications

Brake Disc Type	internally vented
Number of Holes	5
Bolt Hole Circle Ø	108 mm
Surface	Coated
Test Mark	90R-02C0300/1318
Weight	10.661 Kg
Taxcode	87083091
Country	China

Shipping rates

Shipping to :

Estimated delivery

Rate

DHL Express

Estimated delivery : 19 March

€72.29

Reference Numbers

OE Numbers

FORD

1380046 1404955 1405509 1434812 1434815 1864276 6G99N2C375DA 6G9N-2C375-DC 6G9N2C375AC 6G9N2C375DA

LAND ROVER

LR000470

VOLVO

30769061 31400764

Cross-Reference Numbers

A.B.S.

17753

ATE

24.0128-0162.1 428162

BLUE PRINT

ADF124307

CAR

1.421.399

DELPHI

BG4123

FERODO

DDF1607

FORD

1380046 1404955 1405509 1434812 1434815 1864276 6G99N2C375DA 6G9N-2C375-DC 6G9N2C375AC 6G9N2C375DA

KAWE

61280 10

LAND ROVER

LR000470

LPR

V1012V

MINTEX

MDC1828

202570 312570 342570

PAGID

54623

PILENGA

V444

QH Benelux

W50927

QUINTON HAZELL

BDC5718

TEXTAR

92162300 92162303 92162305

TRISCAN

8120 27141

VOLVO

30769061 31400764

Fit Vehicles

FORD

8 vehicles

Model	Produced	KW	HP	CCM
GALAXY II (WA6) 2.0 EcoBoost	2010-03 - 2015-06	149	203	1999
GALAXY II (WA6) 2.0 TDCi	2010-03 - 2015-06	120	163	1997
GALAXY II (WA6) 2.2 TDCi	2008-03 - 2012-12	129	175	2179

Model	Produced	KW	HP	CCM
S-MAX (WA6) 2.0 EcoBoost	2010-07 - 2014-12	146	199	1999
S-MAX (WA6) 2.0 EcoBoost	2010-07 - 2014-12	176	240	1999
S-MAX (WA6) 2.0 EcoBoost	2010-03 - 2014-12	149	203	1999
S-MAX (WA6) 2.2 TDCi	2008-03 - 2012-12	129	175	2179
S-MAX (WA6) 2.5 ST	2006-05 - 2014-12	162	220	2521

LAND ROVER

1 vehicles

Body	Model	Produced	KW	HP	CCM
	FREELANDER 2 (L359) 3.2 4x4	2006-10 - 2014-10	171	233	3192

VOLVO

158 vehicles

Model	Produced	KW	HP	CCM
S60 II (134) T4	2010-04 - 2015-12	132	180	1596
S60 II (134) T4F	2011-04 - 2015-12	132	180	1596
S60 II (134) T6 AWD	2010-04 - 2015-12	224	304	2953
S60 II (134) D2	2015-03 - 2018-05	88	120	1969
S60 II (134) D3	2015-03 - 2018-05	110	150	1969
S60 II (134) D5	2015-03 - 2018-05	165	224	1969
S60 II (134) 2.0 Polestar AWD	2015-06 - 2018-05	270	367	1969
S60 II (134) D4	2015-03 - 2018-05	140	190	1969
S60 II (134) T2	2015-10 - 2018-05	90	122	1498
S60 II (134) T3	2015-03 - 2018-05	112	152	1498
S60 II (134) T3	2015-03 - 2018-05	112	152	1969
S60 II (134) T4	2015-03 - 2018-05	140	190	1969
S60 II (134) D4 AWD	2015-03 - 2018-05	140	190	2400
S60 II (134) T5 AWD	2014-07 - 2018-12	180	245	1969
S60 II (134) T6 AWD	2015-09 - 2018-12	225	306	1969
S60 II (134) T5	2010-04 - 2014-12	177	240	1999
S60 II (134) DRIVe / D2	2011-01 - 2015-12	84	114	1560
S60 II (134) 2.0 T	2010-04 - 2011-12	149	203	1999
S60 II (134) D3	2010-04 - 2014-12	120	163	1984
S60 II (134) D5	2011-04 - 2015-12	158	215	2400
S60 II (134) D5	2010-04 - 2011-12	151	205	2400
S60 II (134) D5 AWD	2011-04 - 2015-12	158	215	2400
S60 II (134) D5 AWD	2010-04 - 2011-12	151	205	2400
S60 II (134) T3	2010-04 - 2015-12	110	150	1596
S60 II (134) 2.0 T	2012-05 - 2015-12	132	180	1984
S60 II (134) T6 AWD	2014-04 - 2015-12	242	329	2953
S60 II (134) D3	2012-05 - 2015-12	100	136	1984
S60 II (134) D4	2010-04 - 2014-12	120	163	1984
S60 II (134) D4	2013-09 - 2015-12	133	181	1969
S60 II (134) D5 AWD	2014-04 - 2015-12	169	230	2400
S60 II (134) D5	2014-04 - 2015-12	169	230	2400
S60 II (134) 3.0 T AWD	2014-04 - 2018-12	258	351	2953
S60 II (134) T6	2013-09 - 2018-12	225	306	1969
S60 II (134) T5	2013-09 - 2018-12	180	245	1969

Model	Produced	KW	HP	CCM
S80 II (124) 3.2	2006-03 - 2010-12	175	238	3192
S80 II (124) 3.2 AWD	2010-01 - 2012-12	179	243	3192
S80 II (124) D3 / D4	2010-01 - 2016-12	120	163	1984
S80 II (124) 1.6 D DRIVe	2010-01 - 2011-12	80	109	1560
S80 II (124) 1.6 DRIVe	2011-06 - 2014-01	84	114	1560
S80 II (124) 2.0 TDi	2008-02 - 2011-03	100	136	1998
S80 II (124) 2.4 D	2006-03 - 2011-03	120	163	2400
S80 II (124) 2.4 D	2010-01 - 2011-03	129	175	2400
S80 II (124) 2.5 T	2006-03 - 2011-12	147	200	2521
S80 II (124) 2.5 T	2010-01 - 2012-12	170	231	2521
S80 II (124) 2.5 T FlexFuel	2008-05 - 2011-12	147	200	2521
S80 II (124) 2.5 T FlexFuel	2010-01 - 2011-12	170	231	2521
S80 II (124) 3.2	2010-01 - 2014-12	179	243	3192
S80 II (124) 3.2 AWD	2007-01 - 2010-12	175	238	3192
S80 II (124) 4.4 V8 AWD	2006-03 - 2012-03	232	316	4414
S80 II (124) D5	2006-03 - 2009-08	136	185	2400
S80 II (124) D3	2012-05 - 2014-05	100	136	1984
S80 II (124) D5	2011-06 - 2015-04	158	215	2400
S80 II (124) D5	2010-01 - 2011-12	151	205	2400
S80 II (124) D5 AWD	2011-06 - 2015-04	158	215	2400
S80 II (124) D5 AWD	2007-01 - 2009-05	136	185	2400
S80 II (124) D5 AWD	2010-01 - 2011-12	151	205	2400
S80 II (124) T6 AWD	2010-10 - 2016-12	224	305	2953
S80 II (124) T6 AWD	2007-01 - 2010-12	210	286	2953
S80 II (124) D4	2013-09 - 2016-12	133	181	1969
S80 II (124) 2.0	2008-01 - 2012-09	107	146	1999
S80 II (124) 2.0 FlexFuel	2008-01 - 2011-12	107	146	1999
S80 II (124) 2.0 T	2010-01 - 2011-05	149	203	1999
S80 II (124) T4	2010-10 - 2014-04	132	180	1596
S80 II (124) T4F	2011-05 - 2014-01	132	180	1596
S80 II (124) T5	2010-10 - 2016-12	177	241	1999
S80 II (124) T5	2013-09 - 2014-05	180	245	1969
S80 II (124) 2.5 T	2012-01 - 2016-04	187	254	2497
S80 II (124) 2.0 Drive- E	2014-12 - 2016-12	180	245	1969
S80 II (124) 2.5 T	2012-09 - 2016-12	183	249	2497

Model	Produced	KW	HP	CCM
V60 I (155) D5	2011-04 - 2015-12	158	215	2400
V60 I (155) D5 AWD	2010-07 - 2011-12	151	205	2400
V60 I (155) T3	2010-09 - 2015-12	110	150	1596
V60 I (155) T4	2010-09 - 2015-12	132	180	1596
V60 I (155) T4F	2011-04 - 2015-12	132	180	1596
V60 I (155) T5	2013-10 - 2018-12	180	245	1969
V60 I (155) D5 AWD	2011-04 - 2015-12	158	215	2400
V60 I (155) 1.6 DRIVe	2011-02 - 2015-12	84	114	1560
V60 I (155) 2.0 T	2010-07 - 2012-12	149	203	1999
V60 I (155) D3 / D4	2010-07 - 2014-12	120	163	1984
V60 I (155) T5	2010-09 - 2014-12	177	241	1999
V60 I (155) T6 AWD	2010-07 - 2015-12	224	305	2953
V60 I (155) D5	2010-07 - 2011-12	151	205	2400
V60 I (155) D5 Hybrid AWD	2015-03 - 2018-05	169	163	2400
V60 I (155) D6 Hybrid AWD	2015-03 - 2018-05	206	220	2400
V60 I (155) 2.0 Polestar AWD	2015-06 - 2018-05	270	367	1969
V60 I (155) D2	2015-03 - 2018-05	88	120	1969
V60 I (155) D3	2015-03 - 2018-05	110	150	1969
V60 I (155) D4	2015-03 - 2018-05	140	190	1969
V60 I (155) T4	2015-03 - 2018-05	140	190	1969
V60 I (155) D4 AWD	2015-03 - 2018-05	140	190	2400
V60 I (155) D5	2015-03 - 2018-05	165	224	1969
V60 I (155) T3	2015-03 - 2018-05	112	152	1498
V60 I (155) T3	2015-03 - 2018-05	112	152	1969
V60 I (155) T5 AWD	2015-04 - 2018-05	187	254	2497
V60 I (155) T2	2015-10 - 2017-03	90	122	1498
V60 I (155) T6 AWD	2013-10 - 2018-12	225	306	1969
V60 I (155) D5	2014-04 - 2015-12	169	230	2400
V60 I (155) D5 AWD	2014-04 - 2015-12	169	230	2400
V60 I (155) D6 Hybrid AWD	2012-06 - 2015-12	206	215	2400
V60 I (155) T5	2013-10 - 2018-05	157	214	1984
V60 I (155) T6 AWD	2014-04 - 2015-12	242	329	2953
V60 I (155) D4	2013-10 - 2015-12	133	181	1969
V60 I (155) T6	2013-10 - 2018-12	225	306	1969
V60 I (155) D4 AWD	2012-05 - 2015-12	120	163	2400
V60 I (155) D3	2012-05 - 2015-12	100	136	1984
V60 I (155) D4 AWD	2013-10 - 2015-12	133	181	2400

Model	Produced	KW	HP	CCM
V70 II (285) D5	2005-04 - 2008-12	136	185	2401
V70 III (135) 2.0	2007-10 - 2011-12	107	145	1999
V70 III (135) 2.0 D	2007-10 - 2015-12	100	136	1998
V70 III (135) 2.4 D	2009-04 - 2010-12	129	175	2400
V70 III (135) 2.5 T	2007-08 - 2009-12	147	200	2521
V70 III (135) 2.5 T FlexiFuel	2009-04 - 2011-12	170	231	2521
V70 III (135) 3.2	2010-04 - 2014-12	179	243	3192
V70 III (135) D5	2007-04 - 2009-12	136	185	2400
V70 III (135) T4	2010-10 - 2015-12	132	180	1596
V70 III (135) T5	2010-01 - 2014-12	177	241	1999
V70 III (135) T6 AWD	2007-08 - 2010-12	210	286	2953
V70 III (135) 2.0 BiFuel	2013-03 - 2015-12	157	214	1984
V70 III (135) D2	2015-03 - 2016-04	88	120	1969
V70 III (135) D3	2015-03 - 2016-04	110	150	1969
V70 III (135) T4	2015-03 - 2016-04	140	190	1969
V70 III (135) T6 AWD	2010-01 - 2015-12	224	305	2953
V70 III (135) D5	2011-04 - 2015-12	158	215	2400
V70 III (135) D5	2008-10 - 2011-12	151	205	2400
V70 III (135) D5 AWD	2011-04 - 2015-12	158	215	2400
V70 III (135) D5 AWD	2007-04 - 2009-12	136	185	2401
V70 III (135) D5 AWD	2009-12 - 2011-12	151	205	2400
V70 III (135) 1.6 D	2009-07 - 2011-12	80	109	1560
V70 III (135) 1.6 DRIVe / D2	2011-04 - 2015-12	84	114	1560
V70 III (135) T4F	2011-01 - 2015-12	132	180	1596
V70 III (135) 2.0 FlexiFuel	2008-01 - 2011-12	107	146	1999
V70 III (135) 2.0 T	2009-09 - 2011-12	149	203	1999
V70 III (135) 2.4 D	2007-04 - 2010-12	120	163	2400
V70 III (135) 2.5 T	2009-04 - 2012-12	170	231	2521
V70 III (135) 2.5 T FlexiFuel	2008-05 - 2009-12	147	200	2521
V70 III (135) 3.2	2007-08 - 2010-12	175	238	3192
V70 III (135) 3.2 AWD	2010-04 - 2015-12	179	243	3192
V70 III (135) 3.2 AWD	2007-04 - 2010-12	175	238	3192
V70 III (135) D3 / D4	2010-03 - 2015-12	120	163	1984
V70 III (135) D4 AWD	2013-10 - 2016-04	133	181	2400
V70 III (135) D4 AWD	2007-10 - 2015-12	120	163	2400
V70 III (135) D3	2007-10 - 2015-12	100	136	1984
V70 III (135) T5	2013-10 - 2016-04	180	245	1969
V70 III (135) D4	2013-10 - 2016-04	133	181	1969

Model	Produced	KW	HP	CCM
XC70 II (136) 2.4 D / D4 AWD	2007-08 - 2016-04	120	163	2400
XC70 II (136) 2.4 D	2009-06 - 2010-12	129	175	2400
XC70 II (136) D5 AWD	2015-03 - 2016-04	162	220	2400
XC70 II (136) 3.2 AWD	2010-05 - 2014-12	179	243	3192
XC70 II (136) 3.2 AWD	2007-08 - 2011-12	175	238	3192
XC70 II (136) D3	2010-04 - 2015-12	120	163	1984
XC70 II (136) D5 AWD	2011-04 - 2015-12	158	215	2400
XC70 II (136) D5 AWD	2007-04 - 2009-12	136	185	2400
XC70 II (136) D5 AWD	2009-04 - 2011-12	151	205	2400
XC70 II (136) T6 AWD	2010-01 - 2015-04	224	304	2953
XC70 II (136) T6 AWD	2008-01 - 2016-12	210	286	2953
XC70 II (136) D4	2013-10 - 2016-04	133	181	1969
XC70 II (136) D4 AWD	2013-10 - 2016-04	133	181	2400
XC70 II (136) T5	2013-10 - 2016-12	180	245	1969
