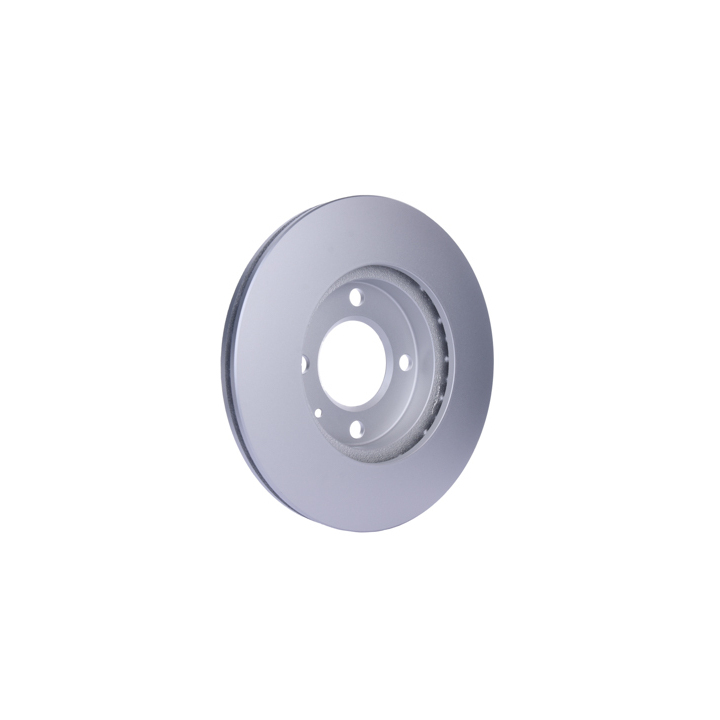

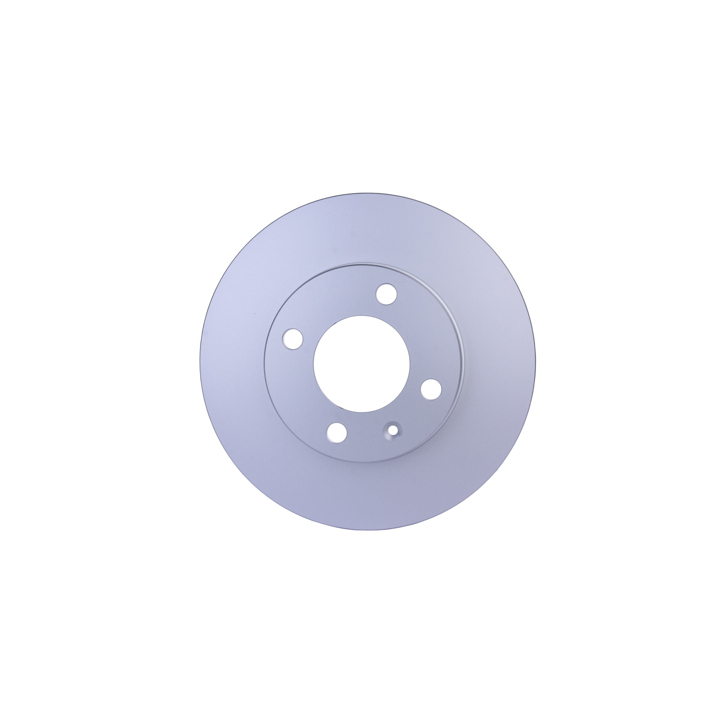

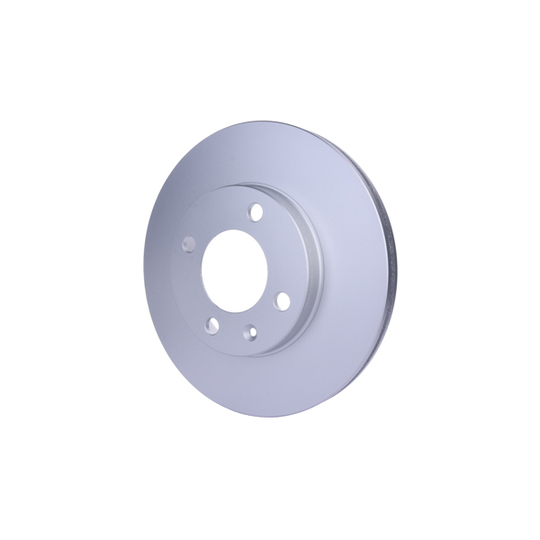

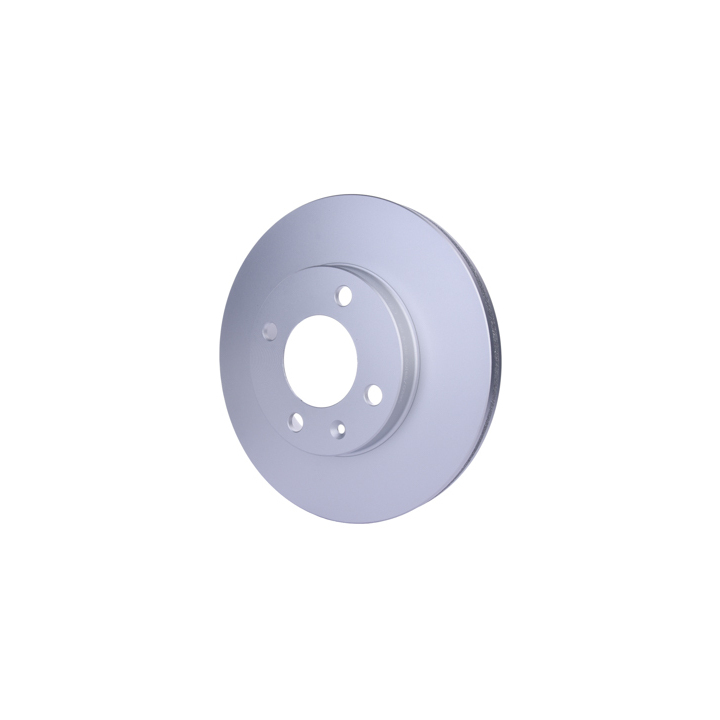

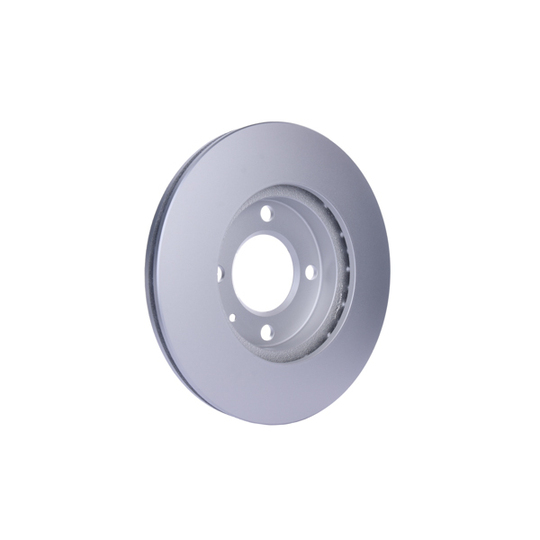

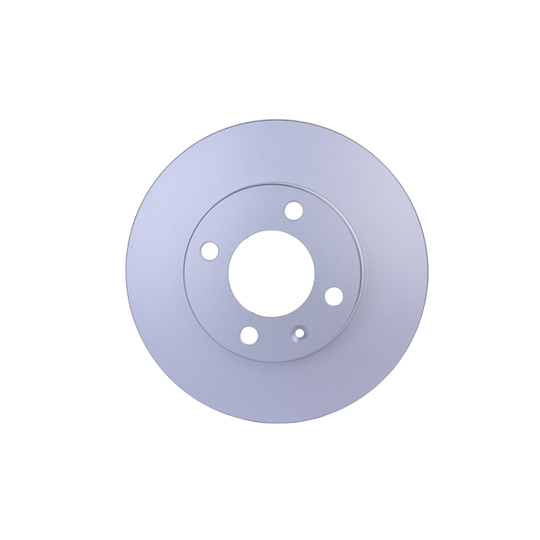

8DD 355 100-191 - Brake Disc

This is the one single brake disc. If you plan to change discs on the entire axle then you should buy two products.

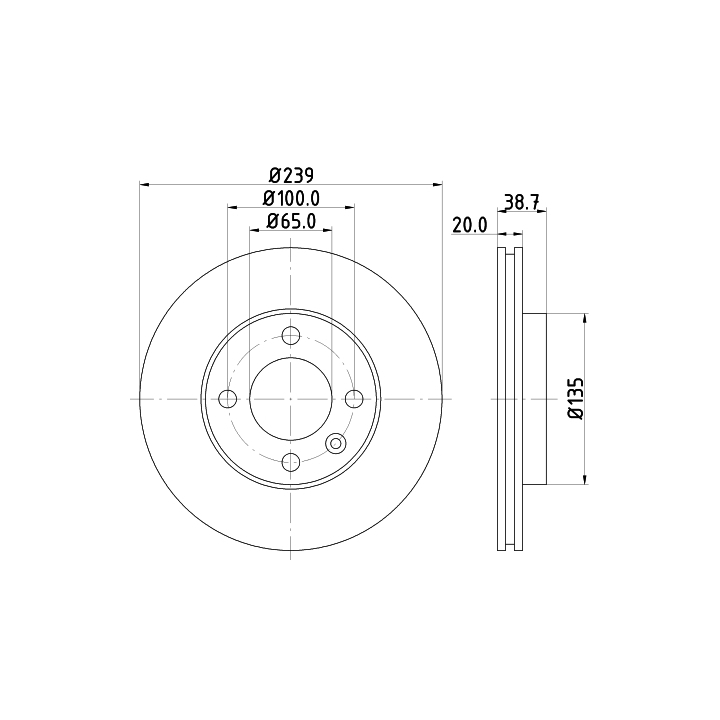

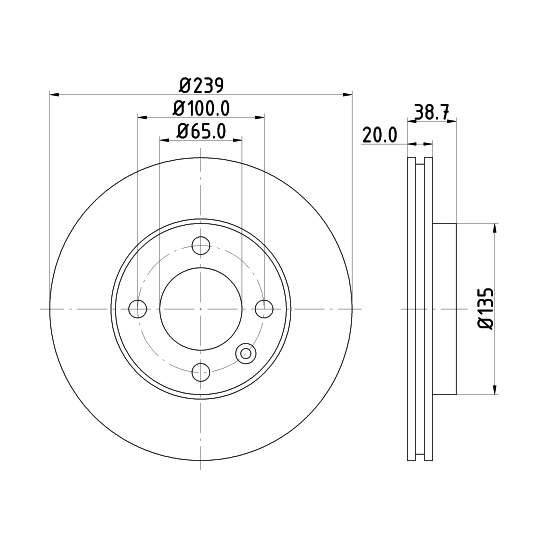

Dimensions and size

Brake Disc Thickness	20	mm
Centering Diameter	65	mm
Height	38.7	mm
Inner Diameter	124.4	mm
Minimum thickness	18	mm
Outer Diameter	239	mm

Specifications

Brake Disc Type	internally vented
Surface	Coated
Bolt Hole Circle Ø	100 mm
Hole Arrangement/Number	04/05
Wheel Bolt Bore Diameter	13.5 mm
Supplementary Article/Supplementary Info 2	without wheel hub
Supplementary Article/Supplementary Info 2	without wheel bearing
Supplementary Article/Supplementary Info 2	without wheel studs
Weight	3.8 kg
Assy./disassy. by qualified personnel required!

Shipping Details

Weight	4.22 Kg
Customs Code	870830
Country of Origin	China

€17.39

Price Includes VAT 0%
Dispatch on next business day
Check shipping rates
Easy returns

Shipping rates

Shipping to :

Estimated delivery

Rate

DHL Express

Estimated delivery : 9 January

€42.80

Reference Numbers

OE Numbers

AMC

FO2038

AUDI

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 6N0 615 301 G 841 615 301 JZW615301K

SEAT

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 6N0 615 301 G 841 615 301 JZW615301K

SKODA

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 6N0 615 301 G 841 615 301

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 5W0615301 5W0615301 6KS 615 301 6N0 615 301 G 841 615 301 JZW615301K

VW (SVW)

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 5W0615301 5W0615301 6N0 615 301 G 841 615 301

Cross-Reference Numbers

A.B.S.

09476514 15704 15704OE

ABE

C3W012ABE

AISIN

X6F948S

AKEBONO

BN0083 BN0083E

AKRON-MALÒ

1110070

ALANKO

10304880

AMC

FO2038

20024E

APEC

DK6207 DSK116 SDK6207

ASHIKA

60000939

ASHUKI by Palidium

P330036

ATE

24012001231 24032001231 420123 520123

AUDI

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 6N0 615 301 G 841 615 301 JZW615301K

AUGROS

5293814P

Auto Elect

A003

BARUM

BAR20123

BENDIX

520093 561178B 561178BC

BENDIX Braking

BDI035 BDS1170

BLUE PRINT

ADV184350

BORG & BECK

BBD4168

BOSCH

0 986 478 017 0 986 BB4 045 0986478013 0986479U13 0986BB4028 BD028

BRADI

1011024 101102E 1580624

BRAXIS

AE0038

BRECK

BR321VA100

BRECO

BS7901

BREMBO

09476510 09476511 09476514 09476575

BREMSI

CD6175V

Brake ENGINEERING

DI939721

CAR

142715 HPD715

CIFAM

800170

COMLINE

ADC1404V AND6404

DAHL

BG109 BG2109

DELPHI

BG109 BG2109

DENCKERMANN

B130021

DON

PCD11072

DYNAMATRIX

DBD175

Dr!ve+

DP1010110351

DÜKER

7009,1 70091

E.T.F.

193975

EBC Brakes

D095 GD095 USR095

EUROBRAKE

5815204724 5815314724

EUROREPAR

1618884580 1686337280

FARCOM

230729

FEBI BILSTEIN

2121 23574 8557

FERODO

DDF175 DDF1751 DDF175C DDF175C1 DDF175D DDF175X

FOMAR Friction

FO2038

FREMAX

BD3975

FTE

9072031 9082031 BS3309 BS3309B

GALFER

B1G22001231

GIRLING

6015171

GRAF

DF29170

HELLA

355 100-191 355100191 530032876

HELLA PAGID

355 100-181 355 100-191 355008351 355017501 355100192 355123601 8DD355100181 8DD355100191 8DD355100192 8DD355123601

ICER

78BD39752

JAPANPARTS

DI0939 DI0939C

JP GROUP

1163110000 615401002ALT

JURATEK

VAG127

JURID

561178J 561178J1 561178JC 8290024

KAGER

370345

KAWE

608410

KWP

129170

LPR

A1071V A1071VR

MAGNETI MARELLI

351011020500

MAPCO

15770 15770C

MAXGEAR

190755 190755MAX 190755SPORT

METELLI

230170

METZGER AUTOTEILE

20024E 6110042

MEYLE

1155211002

MGA

D970

MINTEX

MDC365

MOTAQUIP

LVBD139

NAPA

PBD8412

204724 314724

OBTEC A/S

815421038V

OPEN PARTS

BDA102720 BDR102720

OPTIMAL

BS0840 BS0840C

PAGID

53930 53930PRO

PEX

140027 140027N

PILENGA

V151

QUINTON HAZELL

BDC3309 BDC3476 MBD3309

R BRAKE

78RBD23975

RAMEDER

T0620247 T0620741

REMSA

608410

REPSTAR

VW03101029

RIDEX

82B0044

ROADHOUSE

608410

SEAT

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 6N0 615 301 G 841 615 301 JZW615301K

SEBRO

7129

SKODA

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 6N0 615 301 G 841 615 301

ST-TEMPLIN

010506107199

STELLOX

60204724VKSX 60204724VSX

STOP

561178S

SWAG

32908557

TEXTAR

89009200 89012200 92012100 92012103 92012105 98200012101 TXD0024

TOPRAN

103407

TRISCAN

812029103

TRUCKTEC AUTOMOTIVE

0735029

TRUSTING

DF242

TRW

DF1517 DF1517S DF1520 RCDI01020

VAICO

V1080052

VALEO

185020 186032 186246 672616

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 5W0615301 6KS 615 301 6N0 615 301 G 841 615 301 JZW615301K

VW (SVW)

321 615 301 A 321 615 301 B 321 615 301 C 325 615 289 1 5W0615301 6N0 615 301 G 841 615 301

WAGNER

WGR01751

WOKING

D608410

WÜRTH

980820106

ZIMMERMANN

600159400 600159420 600159452 600159470 600159472 600159475 92012103

fri.tech.

DF242

sbs

1815204724 1815314724

Fit Vehicles

AUDI

12 vehicles

Model	Produced	KW	HP	CCM
80 B1 Saloon (80, 82) 1.6 GTE	1976-01 - 1978-07	81	110	1588
80 B2 Saloon (811, 813, 814, 819, 853) 1.8	1983-01 - 1986-08	66	90	1781
80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE	1985-08 - 1986-07	81	110	1781
80 B1 Saloon (80, 82) 1.6 GT	1973-09 - 1976-07	74	100	1588

Model	Produced	KW	HP	CCM
COUPE B2 (81, 855, 856) 1.8 GT	1982-09 - 1988-10	66	90	1781
COUPE B2 (81, 855, 856) 1.8 GT	1986-08 - 1987-10	79	107	1781
COUPE B2 (81, 855, 856) 1.8 GT	1986-08 - 1988-10	82	112	1781
COUPE B2 (81, 855, 856) 1.8 GT quattro	1984-12 - 1988-10	82	112	1781
COUPE B2 (81, 855, 856) 2.2 GT	1981-07 - 1987-10	85	115	2226
COUPE B2 (81, 855, 856) 1.8 GT	1986-04 - 1988-10	65	88	1781
COUPE B2 (81, 855, 856) 2.1 GT	1982-09 - 1987-10	96	131	2144
COUPE B2 (81, 855, 856) 2.1 GT	1981-01 - 1983-07	79		2144

SEAT

44 vehicles

Model	Produced	KW	HP	CCM
CORDOBA (6K1, 6K2) 1.4	1997-12 - 1999-04	40		1390
CORDOBA (6K1, 6K2) 1.4 16V	2000-05 - 2002-10	55	75	1390
CORDOBA (6K1, 6K2) 1.9 SDI	1999-06 - 2002-10	50	68	1896
CORDOBA (6K1, 6K2) 1.0 i	1996-09 - 2002-10	37	50	999
CORDOBA (6K1, 6K2) 1.4 i	1994-06 - 2002-10	44	60	1389
CORDOBA (6K1, 6K2) 1.4 i 16V	1996-09 - 2002-10	74	101	1390
CORDOBA (6K1, 6K2) 1.6 i	1996-07 - 2002-10	74	101	1595
CORDOBA (6K1, 6K2) 1.6 i	1994-05 - 1999-06	55	75	1595
CORDOBA (6K1, 6K2) 1.8 i	1993-02 - 2002-09	66	90	1781
CORDOBA (6K1, 6K2) 1.9 D	1993-02 - 1996-08	50	68	1896
CORDOBA (6K1, 6K2) 1.9 D	1996-01 - 1996-08	47	64	1896
CORDOBA (6K1, 6K2) 1.9 SDI	1996-08 - 1999-06	47	64	1896
CORDOBA (6K1, 6K2) 1.9 TD	1993-02 - 1996-08	55	75	1896
CORDOBA Vario (6K5) 1.4 16V	1999-06 - 2002-12	55	75	1390
CORDOBA Vario (6K5) 1.4 i	1996-09 - 2002-12	44	60	1389
CORDOBA Vario (6K5) 1.6 i	1996-09 - 2002-12	74	101	1595
CORDOBA Vario (6K5) 1.6 i	1996-09 - 2002-12	55	75	1598
CORDOBA Vario (6K5) 1.6 i	1997-05 - 1999-06	55	75	1595
CORDOBA Vario (6K5) 1.9 SDI	1996-09 - 1999-06	47	64	1896
CORDOBA Vario (6K5) 1.9 SDI	1999-06 - 2002-12	50	68	1896

Model	Produced	KW	HP	CCM
IBIZA II (6K1) 1.0 16V	1999-10 - 2002-05	51		999
IBIZA II (6K1) 1.3 i	1993-03 - 1999-08	40	54	1272
IBIZA II (6K1) 1.4	1997-12 - 1999-04	40	54	1390
IBIZA II (6K1) 1.4 i	1993-09 - 2002-02	44	60	1389
IBIZA II (6K1) 1.4 i 16V	1997-06 - 2002-02	74	101	1390
IBIZA II (6K1) 1.6 i	1993-03 - 2002-02	55	75	1598
IBIZA II (6K1) 1.6 i	1996-04 - 2002-02	74	101	1595
IBIZA II (6K1) 1.6 i	1994-09 - 1999-06	55	75	1595
IBIZA II (6K1) 1.8 i	1993-03 - 1999-08	66	90	1781
IBIZA II (6K1) 1.9 D	1993-04 - 1999-06	47	64	1896
IBIZA II (6K1) 1.9 SDI	1996-08 - 1999-08	47	64	1896
IBIZA II (6K1) 1.9 TD	1993-03 - 1996-08	55	75	1896
IBIZA II (6K1) 2.0 i 16V	1996-08 - 1999-08	110	150	1984
IBIZA II (6K1) 1.4 16V	2000-05 - 2002-02	55	75	1390
IBIZA II (6K1) 1.9 SDI	1999-08 - 2002-02	50	68	1896

Model	Produced	KW	HP	CCM
TOLEDO I (1L2) 1.9 D	1991-05 - 1999-03	50	68	1896
TOLEDO I (1L2) 1.9 D	1995-12 - 1999-03	47	64	1896
TOLEDO I (1L2) 1.9 TD	1991-05 - 1999-03	55	75	1896
TOLEDO I (1L2) 1.6 i	1991-05 - 1999-03	54	73	1595
TOLEDO I (1L2) 1.6 i	1991-05 - 1993-12	52	71	1595
TOLEDO I (1L2) 1.6 i	1993-01 - 1999-03	55	75	1595
TOLEDO I (1L2) 1.6 i	1996-11 - 1999-03	74	101	1595
TOLEDO I (1L2) 1.8 i	1991-05 - 1996-12	65	88	1781
TOLEDO I (1L2) 1.8 i	1993-11 - 1996-12	66	90	1781

95 vehicles

Model	Produced	KW	HP	CCM
GOLF I (17) 1.8 GTI	1982-08 - 1983-12	82	112	1781
GOLF III (1H1) 1.9 D	1991-11 - 1997-08	47	65	1896
GOLF III (1H1) 1.9 SDI	1995-07 - 1997-08	47	64	1896
GOLF III (1H1) 1.9 TD, GTD	1991-11 - 1997-08	55	75	1896
GOLF III Variant (1H5) 1.4	1993-07 - 1999-04	44	60	1390
GOLF III Variant (1H5) 1.9 D	1993-07 - 1999-04	47	65	1896
GOLF III Variant (1H5) 1.9 SDI	1995-07 - 1999-04	47	64	1896
GOLF III Variant (1H5) 1.9 TD	1993-07 - 1999-04	55	75	1896
GOLF I (17) 1.6 GTI	1976-08 - 1982-07	81	110	1588
GOLF I Cabriolet (155) 1.6	1979-08 - 1982-07	81	110	1588
GOLF II (19E, 1G1) 1.8 GTI 16V	1986-08 - 1988-07	100		1781
GOLF I Cabriolet (155) 1.8	1983-08 - 1992-12	82		1781
GOLF II Van (19E, 1G1) 1.8 i	1987-08 - 1991-07	66		1781
GOLF Van III Variant (1H5) 1.9 SDI	1995-07 - 1999-02	47		1896
GOLF Van III Variant (1H5) 1.9	1993-08 - 1999-02	47		1896
GOLF III Variant (1H5) 1.4	1993-07 - 1999-04	40	55	1390
GOLF II (19E, 1G1) 1.8 GTI 16V	1986-02 - 1990-06	102	139	1781
GOLF II (19E, 1G1) 1.8	1986-08 - 1990-01	62	84	1781
GOLF II (19E, 1G1) 1.8	1984-08 - 1991-10	66	90	1781
GOLF III Van (1H1) 1.9 SDI	1995-08 - 1997-09	47		1896
GOLF I Cabriolet (155) 1.8	1983-08 - 1993-04	70	95	1781
GOLF I Cabriolet (155) 1.8	1982-08 - 1989-12	82	112	1781
GOLF I Cabriolet (155) 1.8	1989-08 - 1993-03	72	98	1781
GOLF II (19E, 1G1) 1.8 GTI	1983-08 - 1991-10	82	112	1781
GOLF II (19E, 1G1) 1.8 GTI	1985-08 - 1987-10	79	107	1781
GOLF II (19E, 1G1) 1.8 GTI	1985-01 - 1985-07	77	105	1781
GOLF II (19E, 1G1) 1.8 GTI 16V	1986-02 - 1991-10	95	129	1781
GOLF II (19E, 1G1) 1.8 GTI Cat	1987-01 - 1991-10	79	107	1781
GOLF II (19E, 1G1) 1.8 i Cat	1987-08 - 1991-10	66	90	1781
GOLF III (1H1) 1.4	1991-11 - 1997-08	40	55	1390
GOLF III (1H1) 1.4	1991-10 - 1997-08	44	60	1390
GOLF III (1H1) 1.6	1992-09 - 1997-08	55	75	1598
GOLF I Cabriolet (155) 1.8	1983-08 - 1992-09	66	90	1781

Model	Produced	KW	HP	CCM
JETTA I (16) 1.6 GLI	1978-08 - 1982-07	81	110	1588
JETTA I (16) 1.8	1982-08 - 1984-02	82	112	1781
JETTA II (19E, 1G2, 165) 1.8	1984-01 - 1991-10	82	112	1781
JETTA II (19E, 1G2, 165) 1.8	1985-08 - 1987-10	79	107	1781
JETTA II (19E, 1G2, 165) 1.8 16V	1986-08 - 1991-10	95	129	1781
JETTA II (19E, 1G2, 165) 1.8 16V	1987-06 - 1989-12	102	140	1781
JETTA II (19E, 1G2, 165) 1.8	1985-01 - 1992-12	77		1781
JETTA II (19E, 1G2, 165) 1.8 Cat	1987-01 - 1991-10	79	107	1781
JETTA II (19E, 1G2, 165) 1.8	1986-08 - 1990-01	62	84	1781
JETTA II (19E, 1G2, 165) 1.8	1984-08 - 1991-10	66	90	1781
JETTA II (19E, 1G2, 165) 1.8 Cat	1987-08 - 1991-10	66	90	1781

Model	Produced	KW	HP	CCM
PASSAT B2 (32B) 1.8	1983-12 - 1988-03	82	112	1781
PASSAT B2 (32B) 2.0	1983-08 - 1988-03	85	115	1994
PASSAT B2 (32B) 2.2	1985-08 - 1988-03	85	115	2226
PASSAT B2 (32B) 1.9	1981-01 - 1983-07	85	115	1921
PASSAT B2 (32B) 2.1	1981-01 - 1983-12	85		2144
PASSAT B2 Variant (33B) 2.1	1981-01 - 1983-07	85		2144
PASSAT B2 Saloon (32B) 2.0	1984-08 - 1985-07	85		1994
PASSAT B2 Variant (33B) 1.9	1981-01 - 1983-07	85	115	1921
PASSAT B2 Saloon (32B) 2.2	1985-01 - 1988-03	85	115	2226
PASSAT B2 Variant (33B) 1.8	1983-01 - 1988-03	66	90	1781
PASSAT B2 Variant (33B) 1.8	1983-12 - 1988-03	82	112	1781
PASSAT B2 Variant (33B) 2.0	1983-08 - 1988-03	85	115	1994
PASSAT B2 Variant (33B) 2.2	1985-08 - 1988-03	85	115	2226

Model	Produced	KW	HP	CCM
POLO III CLASSIC (6V2) 64 1,9 D	1996-01 - 1996-10	47		1896
POLO Estate Van (6V5) 1.9 SDI	1995-12 - 1999-08	47		1896
POLO Estate Van (6V5) 1.4	1997-08 - 1999-12	44		1390
POLO Estate Van (6V5) 1.4	2000-06 - 2001-09	55		1390
POLO Estate Van (6V5) 1.9 SDI	1999-10 - 2001-09	50		1896
POLO Coupe (86C, 80) 1.3 G40	1990-08 - 1994-09	83	113	1272
POLO III CLASSIC (6V2) 100 1.6	1995-12 - 2001-09	74	100	1595
POLO III CLASSIC (6V2) 110 1.9 TDI	1998-06 - 2002-01	81	110	1896
POLO III CLASSIC (6V2) 54 1.4	1998-01 - 1999-08	40	54	1390
POLO III CLASSIC (6V2) 57 1.7 SDI	1997-07 - 2001-09	42	57	1715
POLO III CLASSIC (6V2) 60 1.4	1995-12 - 2001-09	44	60	1390
POLO III CLASSIC (6V2) 64 1.9 SDI	1995-12 - 1999-08	47	64	1896
POLO III CLASSIC (6V2) 68 1.9 SDI	1999-08 - 2002-01	50	68	1896
POLO III CLASSIC (6V2) 75 1.4 16V	1999-10 - 2001-09	55	75	1390
POLO III CLASSIC (6V2) 75 1.6	1995-11 - 2001-09	55	75	1598
POLO III CLASSIC (6V2) 75 1.6	1995-11 - 1997-09	55	75	1595
POLO III CLASSIC (6V2) 90 1.8	1997-01 - 2001-09	66	90	1781
POLO III CLASSIC (6V2) 90 1.9 TDI	1996-09 - 2001-09	66	90	1896
POLO Variant (6V5) 1.4	1997-05 - 2001-09	44	60	1390
POLO Variant (6V5) 1.4	1998-01 - 1999-08	40	54	1390
POLO Variant (6V5) 1.4 16V	1999-10 - 2001-09	55	75	1390
POLO Variant (6V5) 1.6	1997-05 - 2001-09	55	75	1598
POLO Coupe (86C, 80) 1.3 G40	1987-01 - 1990-08	85	115	1272
POLO Variant (6V5) 1.7 SDI	1997-08 - 2001-09	42	57	1715
POLO Variant (6V5) 1.9 SDI	1997-06 - 2001-09	47	64	1896
POLO Variant (6V5) 1.9 SDI	1999-08 - 2001-09	50	68	1896

Model	Produced	KW	HP	CCM
SANTANA (32B) 1.9	1981-08 - 1983-07	85	115	1921
SANTANA (32B) 2.0	1983-08 - 1984-12	85	115	1994
SANTANA (32B) 2.1	1982-08 - 1983-12	85		2144

Model	Produced	KW	HP	CCM
SCIROCCO (53) 1.6	1976-06 - 1980-07	81	110	1588
SCIROCCO (53B) 1.6	1980-08 - 1982-07	81	110	1588
SCIROCCO (53B) 1.8	1983-08 - 1992-07	66	90	1781
SCIROCCO (53B) 1.8	1985-11 - 1992-07	70	95	1781
SCIROCCO (53B) 1.8	1982-08 - 1989-12	82	112	1781

Model	Produced	KW	HP	CCM
VENTO (1H2) 1.4	1991-11 - 1998-09	40	55	1390
VENTO (1H2) 1.4	1991-11 - 1998-09	44	60	1390
VENTO (1H2) 1.9 D	1991-11 - 1998-09	48	65	1896
VENTO (1H2) 1.9 SDI	1997-04 - 1998-09	47	64	1896
