8DT 355 302-871 - Brake Drum

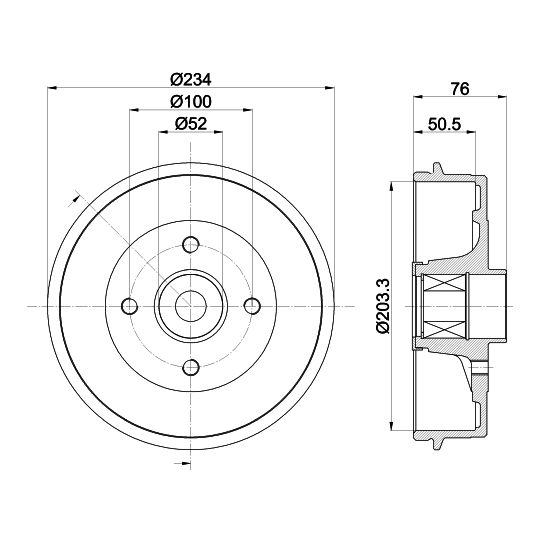

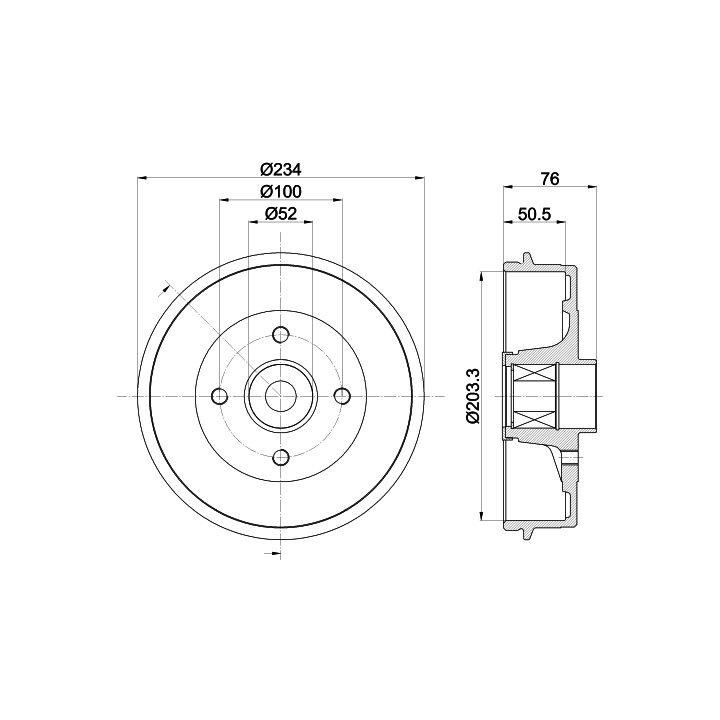

Dimensions and size

Centering Diameter

Specifications

Outer brake drum diameter	234 mm
Total brake drum height	76 mm
Inner brake drum diameter	203 mm
Inner brake drum height	51 mm
max. brake drum reboring dimension	204.5 mm
Hole Arrangement/Number	04/04
Bolt Hole Circle Ø	100 mm
Stub Axle Diameter	25 mm
Wheel Bolt Bore Diameter	12 mm
Supplementary Article/Supplementary Info 2	with wheel hub
Supplementary Article/Supplementary Info 2	with ABS sensor ring
Supplementary Article/Supplementary Info 2	with wheel bearing
Supplementary Article/Supplementary Info 2	without wheel studs
Weight	5.6 kg
Assy./disassy. by qualified personnel required!

Shipping Details

Weight	5.736 Kg
Customs Code	870830
Country of Origin	Germany

€120.44

Price Includes VAT 0%
Dispatch in 28 business days
Check shipping rates

Shipping rates

Shipping to :

Estimated delivery

Rate

DHL Express

Estimated delivery : 18 February

€51.38

Reference Numbers

OE Numbers

DACIA

432009941R 6001550811 8200243735

RENAULT

432004255R 432023259R 432024763R 8200243735 8200290352

Cross-Reference Numbers

A.B.S.

2828S 2829S 2880S 2880SC 2881SC 5345S

APEC

BDR9003 DRM9227

ASHIKA

5600007 56000409

ATE

24022030361 480301

BENDIX

329732B

BENDIX Braking

BDM1135

BLUE PRINT

ADBP470005

BOSCH

0986477210 0986477211 0986477289 0986477323

BRECO

BT4747

BREMBO

14725720

BREMSI

CR5396 CR5665

DACIA

432009941R 6001550811 8200243735

EUROBRAKE

5825253930 5825253931

FTE

9190019 9190020 BT1035 BT1035LS

HELLA

355 302-871 355302871 8DT 355 300-671

HELLA PAGID

355300671 355302871 8DT355300671 8DT355302871

JAPANPARTS

TA007 TA007C TA0409 TA0409C

JAPKO

56007 56007C 560409 560409C

JURID

329732J

LPR

7D0665 7D0665C 7D0665CA

MAXGEAR

191350 193543

MINTEX

MBD293

252226 253928 253930

PAGID

61275 61427

REMSA

710300

RENAULT

432004255R 432023259R 432024763R 8200243735 8200290352

ROADHOUSE

710300

STELLOX

60253912SX

TEXTAR

94027500 94042400 98100027501 98100042401

TRW

DB4214 DB4214B DB4373 DB4373B

WOKING

B710300

sbs

1825253928 1825253930 253928

Fit Vehicles

DACIA

29 vehicles

Model	Produced	KW	HP	CCM
LOGAN (LS_) 1.5 dCi (LS04)	2010-05 - ...	65	88	1461
LOGAN (LS_) 1.5 dCi (LS04)	2010-05 - 2012-12	55	75	1461
LOGAN (LS_) 1.5 dCi (LS0J, LS0Y)	2005-09 - ...	48	65	1461
LOGAN (LS_) 1.5 dCi (LS0K)	2006-01 - 2012-12	50	68	1461
LOGAN (LS_) 1.5 dCi (LS0W)	2007-09 - 2011-12	63	86	1461
LOGAN (LS_) 1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,...	2006-02 - ...	77	105	1598
LOGAN (LS_) 1.6 Bifuel	2010-05 - ...	62	84	1598
LOGAN (LS_) 1.6 (LS0B, LS0D, LS0F, LS0H)	2004-09 - ...	64	87	1598
LOGAN (LS_) 1.6 MPI 85	2010-05 - ...	62	84	1598
LOGAN (LS_) 1.2 16V (LS1N, LS02, BS02)	2006-02 - ...	55	75	1149
LOGAN (LS_) 1.4 (LS0A, LS0C, LS0E, LS0G)	2004-09 - ...	55	75	1390
LOGAN (LS_) 1.4 MPI LPG (LS0C)	2006-02 - 2012-12	55	75	1390
LOGAN (LS_) 1.2 16V LPG	2006-02 - ...	55	75	1149
LOGAN (LS_) 1.6 16V Flexifuel	2010-07 - ...	77	105	1598

Model	Produced	KW	HP	CCM
SANDERO (BS_) 1.4 (BS0C, BS0A, BS0G, BS1F, BS0E)	2008-06 - 2012-12	55	75	1390
SANDERO (BS_) 1.4 MPI LPG	2009-01 - 2012-12	53	72	1390
SANDERO (BS_) 1.5 dCi	2008-11 - 2012-12	48		1461
SANDERO (BS_) 1.6 Hi-Flex (BS1H)	2008-06 - 2012-12	64		1598
SANDERO (BS_) 1.5 dCi	2010-05 - 2013-06	65	88	1461
SANDERO (BS_) 1.5 dCi	2010-05 - 2013-06	55	75	1461
SANDERO (BS_) 1.5 dCi	2008-11 - 2012-12	50	68	1461
SANDERO (BS_) 1.5 dCi	2008-11 - 2012-12	63	86	1461
SANDERO (BS_) 1.6 (BS0D, BS0B, BS0F, BS0H)	2008-06 - 2012-12	64	87	1598
SANDERO (BS_) 1.6 MPI 85 (BS03)	2010-05 - 2013-06	62	84	1598
SANDERO (BS_) 1.6 16V Bifuel	2011-01 - 2012-12	77	105	1598
SANDERO (BS_) 1.2 16V	2008-11 - 2013-06	55	75	1149
SANDERO (BS_) 1.2 16V LPG	2008-11 - 2013-06	55	75	1149
SANDERO (BS_) 1.6 16V	2011-07 - 2012-12	77	105	1598
SANDERO (BS_) 1.6 LPG	2008-06 - 2012-12	64		1598

RENAULT

56 vehicles

Model	Produced	KW	HP	CCM
CLIO II Hatchback Van (SB0/1/2_) 1.5 dCi (SB3M)	2005-06 - 2010-12	47		1461
CLIO II (BB_, CB_) 1.4 16V (B/CB0P, BB13)	2000-02 - 2008-07	72	98	1390
CLIO II (BB_, CB_) 1.4 (B/CB0C, B/CB0S)	1998-09 - 2005-05	55	75	1390
CLIO II (BB_, CB_) 1.5 dCi	2003-10 - 2005-04	74	100	1461
CLIO II (BB_, CB_) 1.5 dCi (B/C2J)	2004-08 - 2012-12	50	68	1461
CLIO II (BB_, CB_) 1.5 dCi	2001-06 - 2006-12	42	57	1461
CLIO II (BB_, CB_) 1.5 dCi (B/CB03)	2001-06 - 2003-10	59	80	1461
CLIO II (BB_, CB_) 1.5 dCi (B/CB07)	2001-06 - 2009-07	48	65	1461
CLIO II (BB_, CB_) 1.5 dCi (B/CB08)	2001-06 - 2005-04	60	82	1461
CLIO II (BB_, CB_) 1.5 dCi (B/CB3M)	2005-06 - 2010-12	47	64	1461
CLIO II (BB_, CB_) 1.5 dCi (BB3N, CB3N)	2007-02 - 2009-06	62	84	1461
CLIO II (BB_, CB_) 1.6 16V (BB01, BB0H, BB0T, BB14, BB1D, BB1R, BB2KL, BB3G...	1998-09 - 2005-04	79	107	1598
CLIO II (BB_, CB_) 1.6 (B/CB0D, BB00)	1998-09 - 2005-05	66	90	1598
CLIO II (BB_, CB_) 1.9 D (B/CB0E, BB0J)	1998-09 - 2005-05	47	64	1870
CLIO II (BB_, CB_) 1.9 dTi (B/CB0U)	1999-12 - 2005-05	59	80	1870
CLIO II Hatchback Van (SB0/1/2_) 1.5 dCi (SB07)	2001-06 - ...	48	65	1461
CLIO II (BB_, CB_) 1.6 16V	1999-03 - 2008-12	82		1598
CLIO II Hatchback Van (SB0/1/2_) 1.9 D (SB0E)	1998-09 - ...	47		1870
CLIO II Hatchback Van (SB0/1/2_) 1.2 (SB0A, SB0F, SB1K, SB2D)	1998-09 - ...	43		1149
CLIO II Hatchback Van (SB0/1/2_) 1.6 (SB0H)	2003-11 - ...	79		1598
CLIO II Hatchback Van (SB0/1/2_) 1.5 dCi	2004-04 - ...	50		1461
CLIO II Hatchback Van (SB0/1/2_) 1.5 dCi	2003-11 - ...	60		1461
CLIO II Hatchback Van (SB0/1/2_) 1.2 (SB0A, SB0F, SB10)	1999-03 - 2003-10	44		1149
CLIO II (BB_, CB_) 1.2 LPG	1998-09 - 2009-06	43	58	1149
CLIO II (BB_, CB_) 1.2 16V (BB05, BB0W, BB11, BB27, BB2T, BB2U, BB2V, CB05,...	2001-06 - 2016-08	55	75	1149
CLIO II (BB_, CB_) 1.2 (BB0A, BB0F, BB10, BB1K, BB28, BB2D, BB2H, CB0A,...	1998-09 - 2010-02	43	58	1149
CLIO II Hatchback Van (SB0/1/2_) 1.5 dCi	2001-06 - 2004-10	59		1461

Model	Produced	KW	HP	CCM
LOGAN I Estate (KS_) 1.6 (KS0L, KS0M, KS0P, KS1S)	2007-04 - ...	77	105	1598
LOGAN I (LS_) 1.4	2004-09 - ...	55	75	1390
LOGAN I (LS_) 1.5 dCi	2008-02 - 2015-06	63	86	1461
LOGAN I (LS_) 1.5 dCi	2007-04 - ...	50	68	1461
LOGAN I (LS_) 1.6	2004-09 - ...	64	87	1598
LOGAN I (LS_) 1.6 (LS0L, LS09, LS0V, LS0P, LS18, LS1S, LS1V, LS1Y,...	2007-04 - 2013-10	77	105	1598
LOGAN I (LS_) 1.5 dCi	2006-04 - 2013-10	48	65	1461

Body	Model	Produced	KW	HP	CCM
	SANDERO/STEPWAY I (BS_) 1.6	2012-05 - 2012-12	77		1598
	SANDERO/STEPWAY I (BS_) 1.6	2010-11 - 2013-07	62		1598

Model	Produced	KW	HP	CCM
THALIA I (LB_) 1.2 16V	2002-04 - 2009-02	55	75	1149
THALIA I (LB_) 1.4	2000-08 - 2005-10	55	75	1390
THALIA I (LB_) 1.4 16V	2000-08 - 2009-02	72	98	1390
THALIA I (LB_) 1.5 dCi	2002-04 - 2009-02	48	65	1461
THALIA I (LB_) 1.5 dCi	2001-06 - 2009-02	60	82	1461
THALIA I (LB_) 1.5 dCi	2003-02 - 2009-02	50	68	1461
THALIA I (LB_) 1.5 dCi	2005-06 - 2009-02	47	64	1461
THALIA II (LU_) 1.5 dCi	2008-09 - 2014-06	47		1461
THALIA II (LU_) 1.5 dCi	2009-01 - 2014-06	48		1461
THALIA I (LB_) 1.6 16V	2000-07 - 2009-02	79		1598
THALIA I (LB_) 1.6	2004-01 - 2008-12	82		1598
THALIA III (L8_) 1.2 16V	2013-12 - ...	55		1149
THALIA II (LU_) 1.5 dCi	2008-09 - 2012-12	62	85	1461
THALIA I (LB_) 1.4 (LB17)	2000-05 - 2009-02	72		1390

Model	Produced	KW	HP	CCM
TWINGO I Hatchback Van (S06_) 1.2 (S066, S068)	1996-05 - 2004-08	43		1149
TWINGO I Hatchback Van (S06_) 1.2	2001-01 - 2012-06	55		1149
TWINGO I (C06_) 1.2 16V (C060)	2004-08 - 2007-06	44	60	1149
TWINGO I (C06_) 1.2 16V (C06C, C06D, C06K)	2001-01 - 2007-06	55	75	1149
TWINGO I (C06_) 1.2 (C066, C068)	1996-05 - 2007-06	43	58	1149
TWINGO I (C06_) 1.2 (C067)	1996-05 - 2007-03	40	54	1149
