2RL 010 979-017

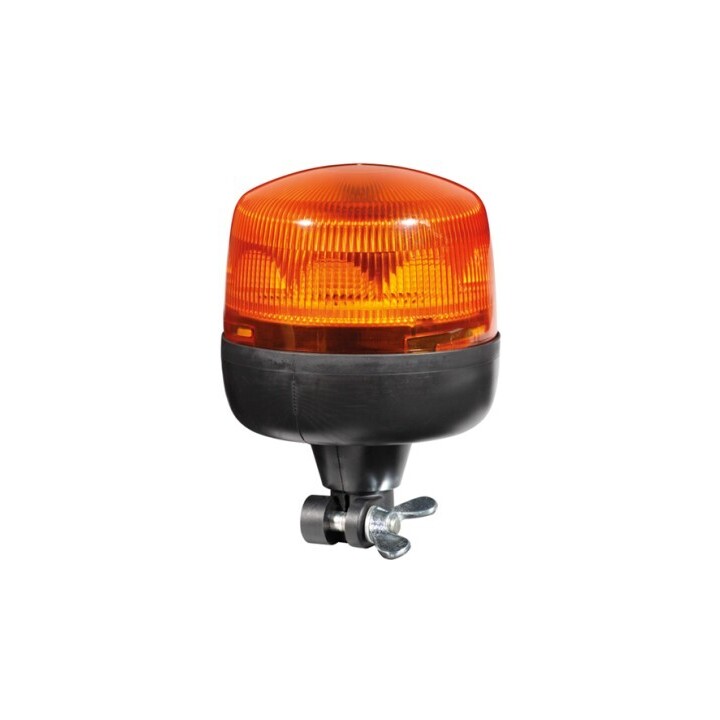

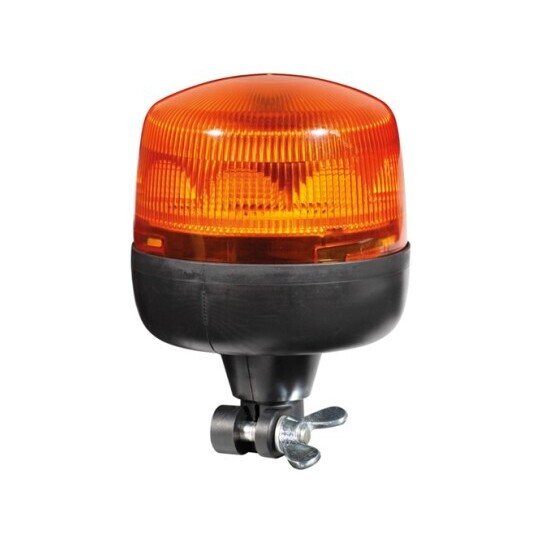

Rotating Beacon
No longer deliverable by the manufacturer

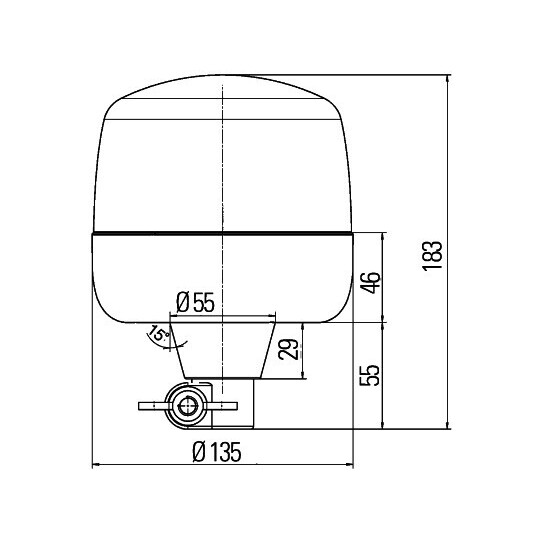

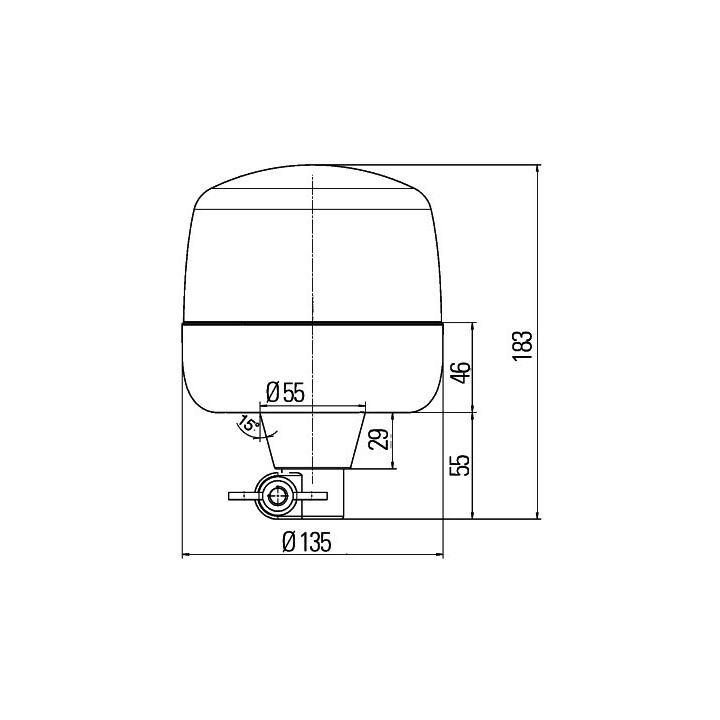

Dimensions and size
| Height | 183 | mm |
Specifications
| Mounting Type | Flexible pipe sockets |
| Lamp Type | LED |
| Light Function | With rotating warning signal |
| Light Design | LED |
| Light colour | yellow (amber) |
| LED Colour | yellow (amber) |
| Voltage | 12 V |
| Voltage | 24 V |
| Power Consumption | 10 W |
| Power consumption | 0.4 A |
| Outer Diameter 1 | 135 mm |
| Lens Material | PC (Polycarbonate) |
| Housing material | EPDM (ethylene propylene diene Monomer (M-class) rubber) |
| Housing Colour | Black |
| Lens Colour | yellow (amber) |
| Protection Type | IP5K4K IP Code |
| Protection Type | IPX9K IP Code |
| Temperature range from | -10 °C |
| Temperature range to | +60 °C |
| fulfils ECE standard | R10 |
| fulfils ECE standard | R65 |
| fulfils test standard | RCM |
| Weight | 745 g |
| Quantity | 120 |
| Number of light functions | 1 |
| Number of LEDs | 8 |
| Reverse polarity protection | Yes |
| Rotating beacon RPM | 123 1/min |
| Registration Type | ECE approved |
| Registration Type | SAE approved |
| Registration Type | ADR/GGVS approved |
| Supplementary Article/Supplementary Info 2 | Electromagnetic Compatibility (EMC) |
| Assy./disassy. by qualified personnel required! |
Shipping Details
| Weight | 0.744 Kg |
| Customs Code | 851220 |
No longer available
