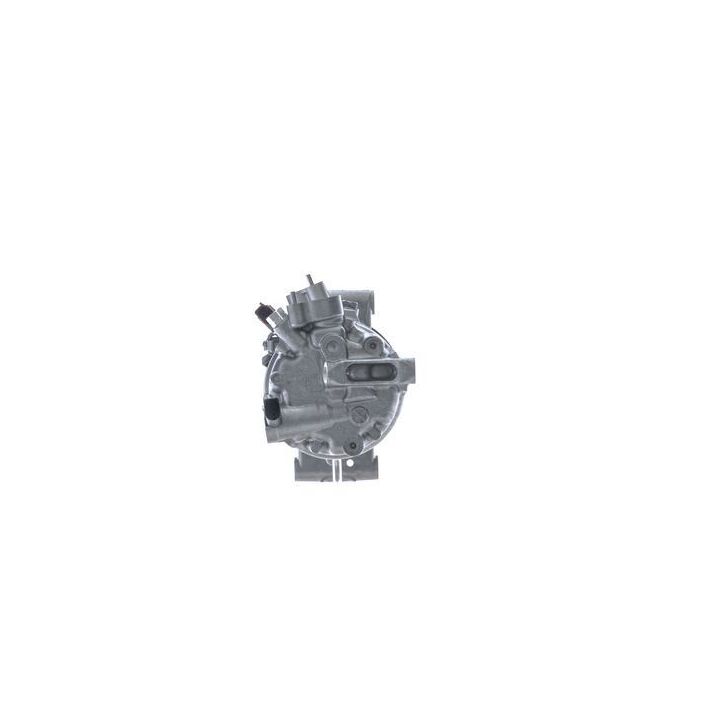

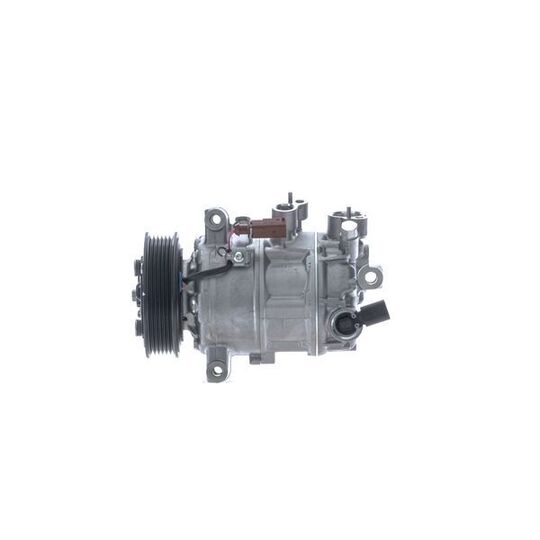

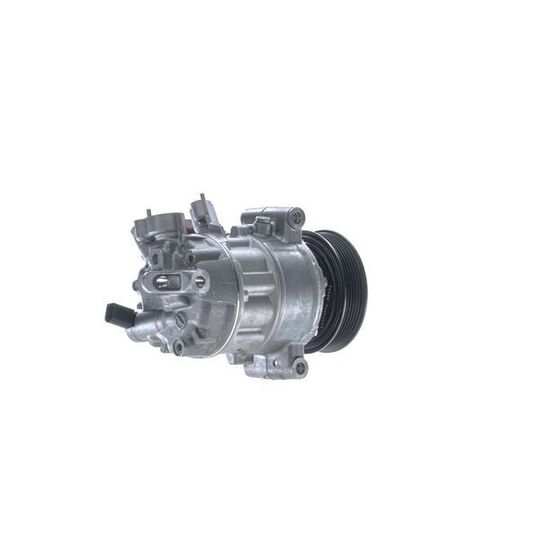

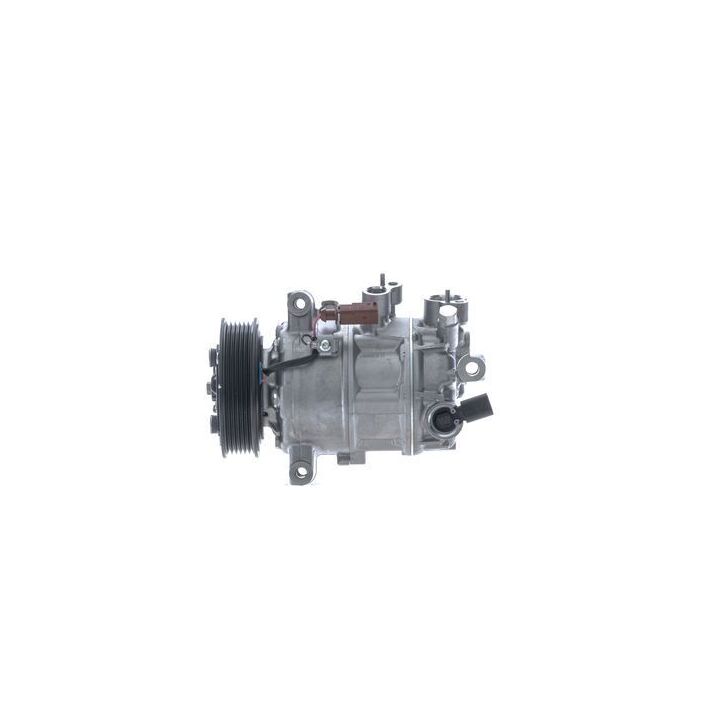

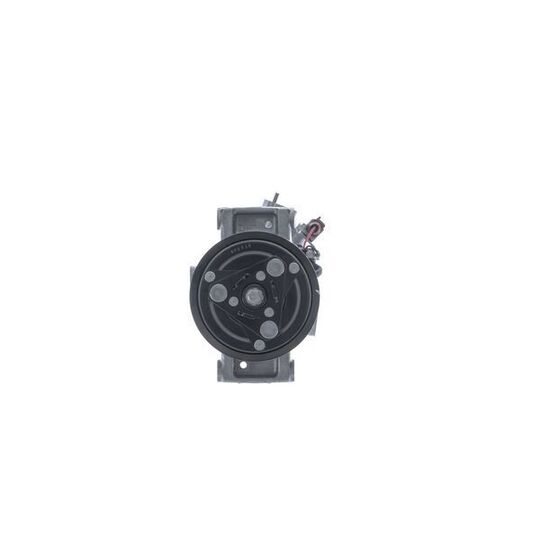

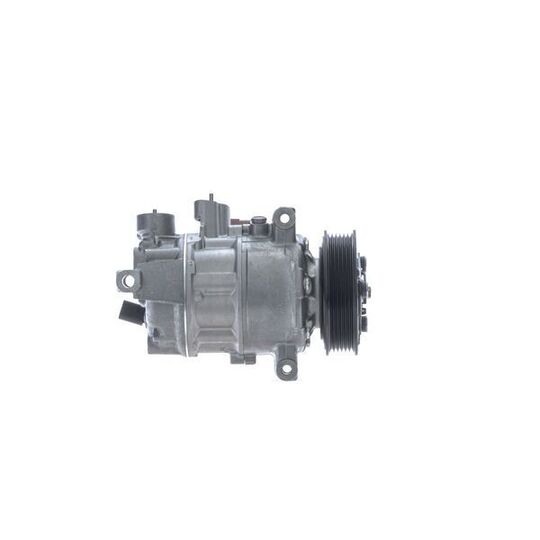

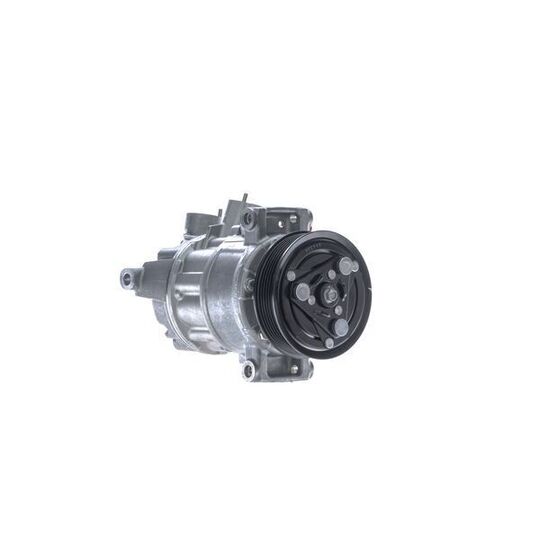

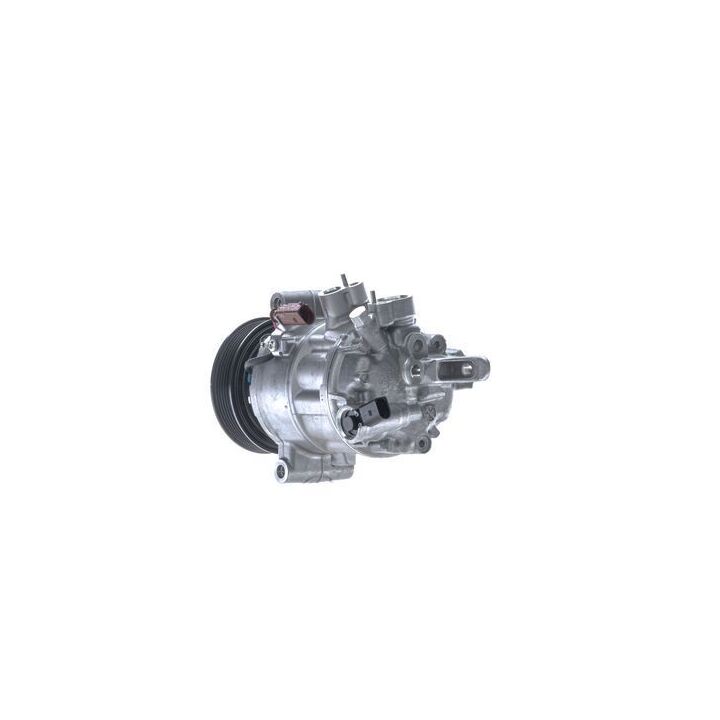

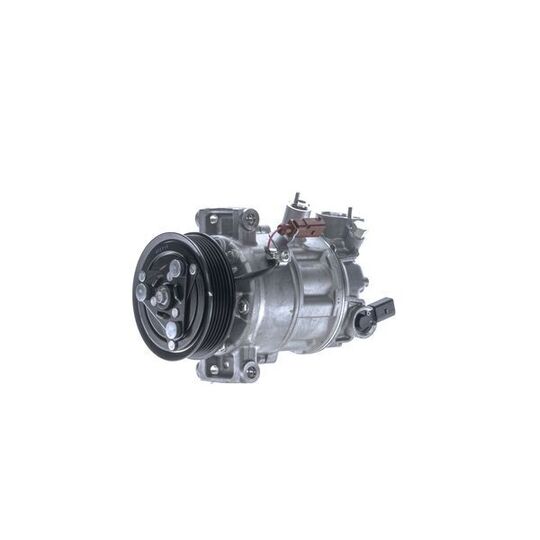

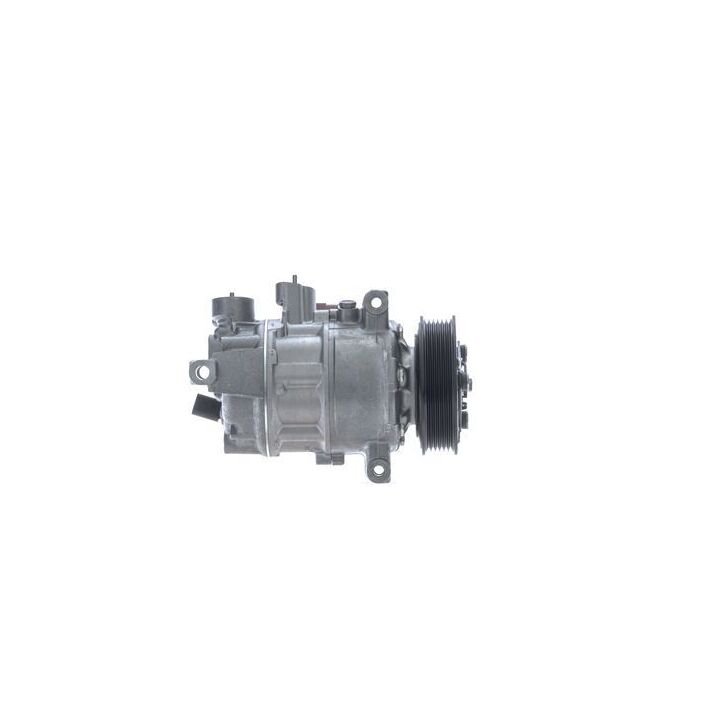

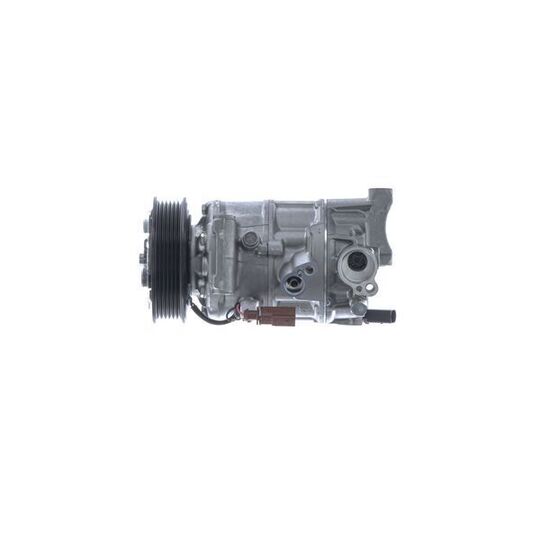

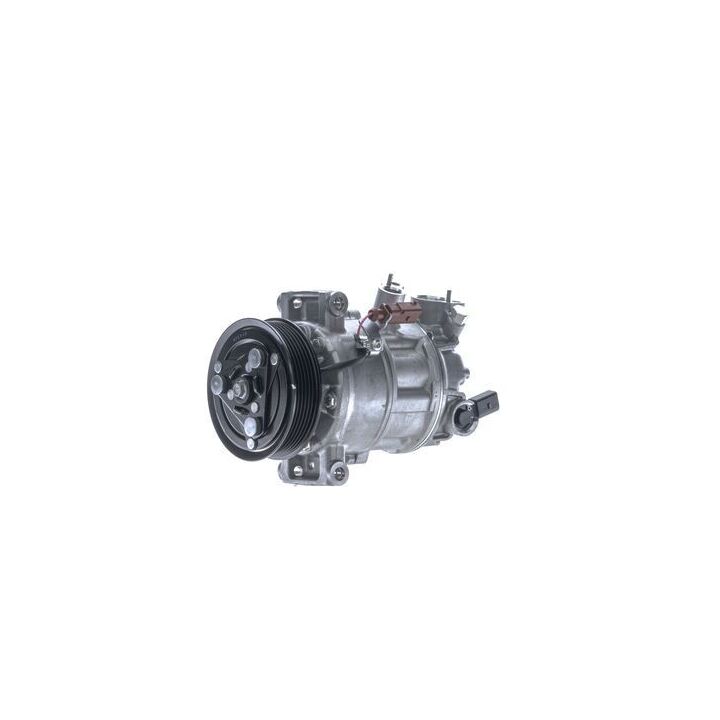

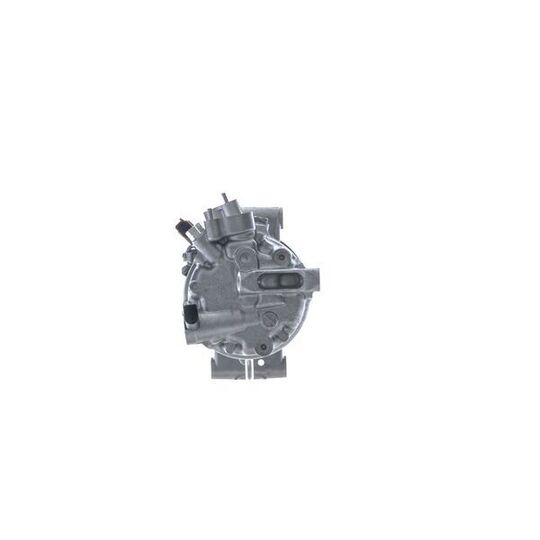

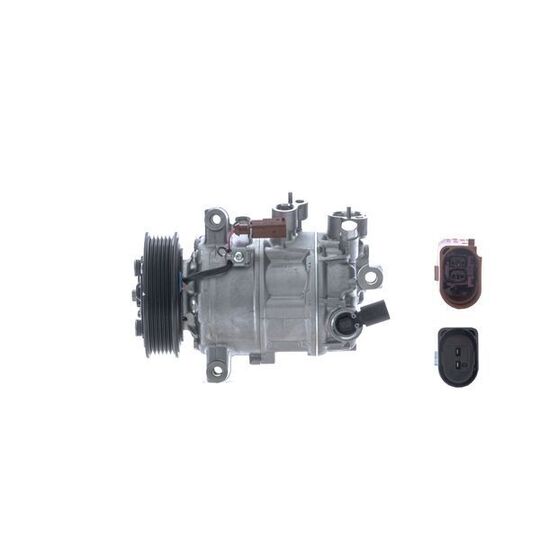

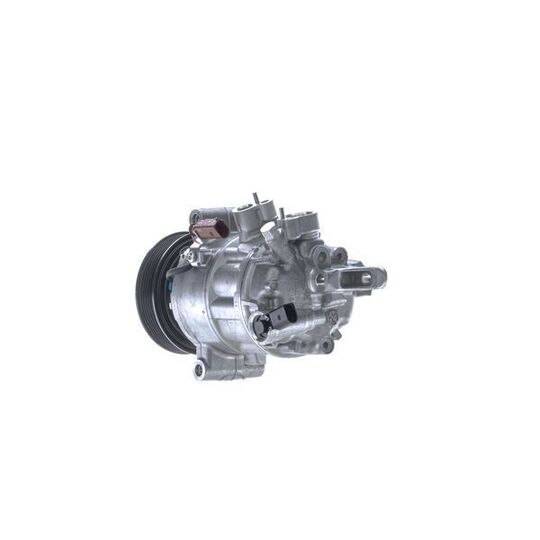

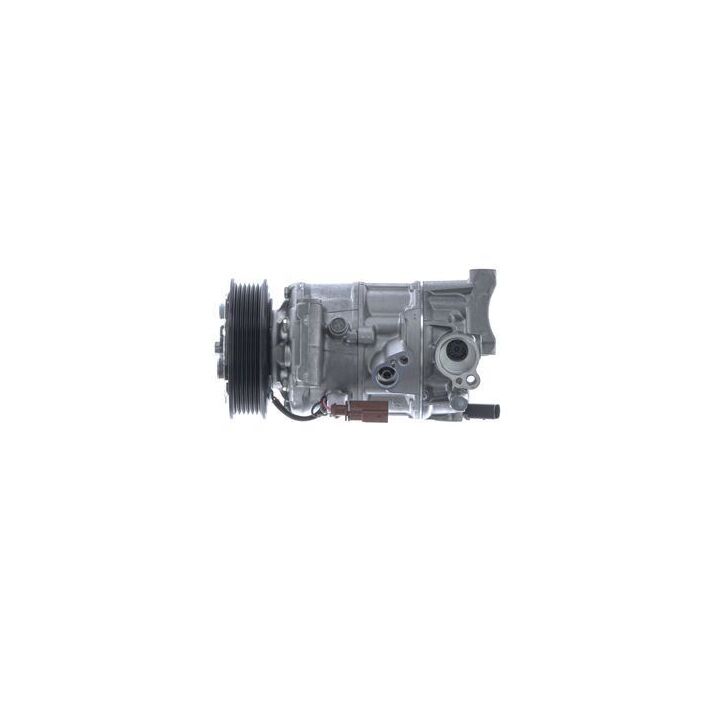

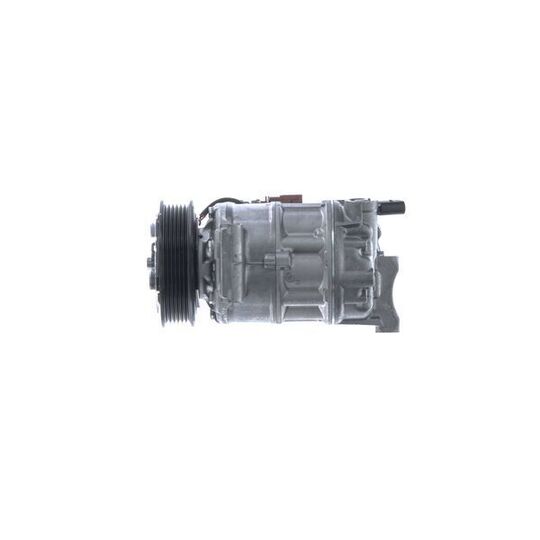

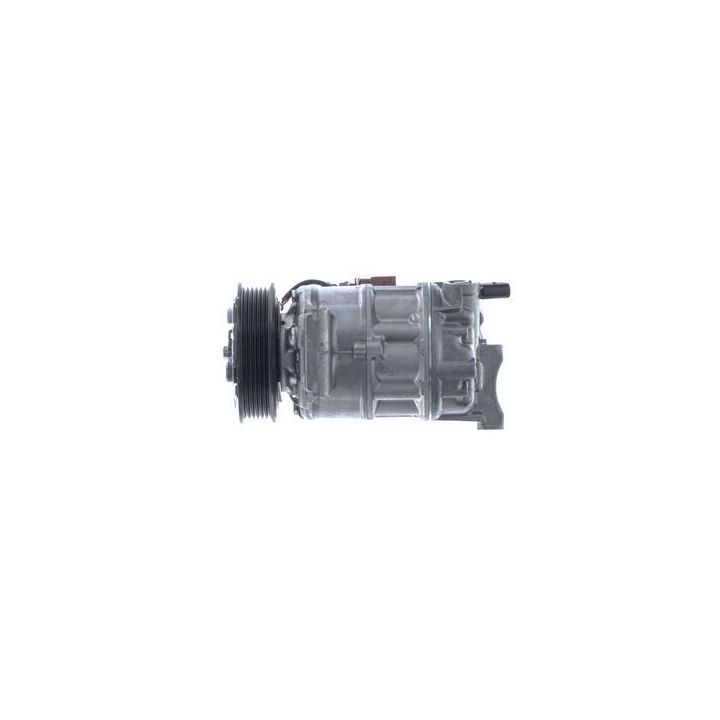

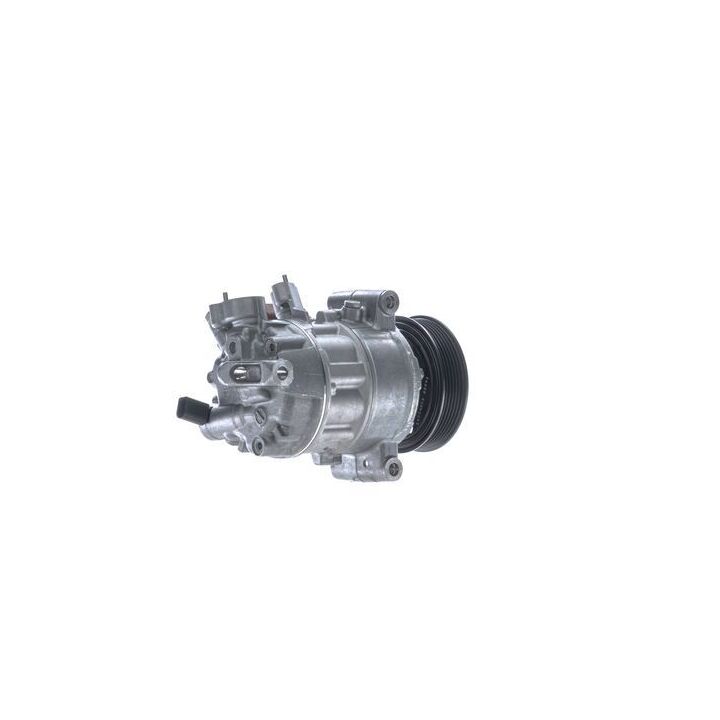

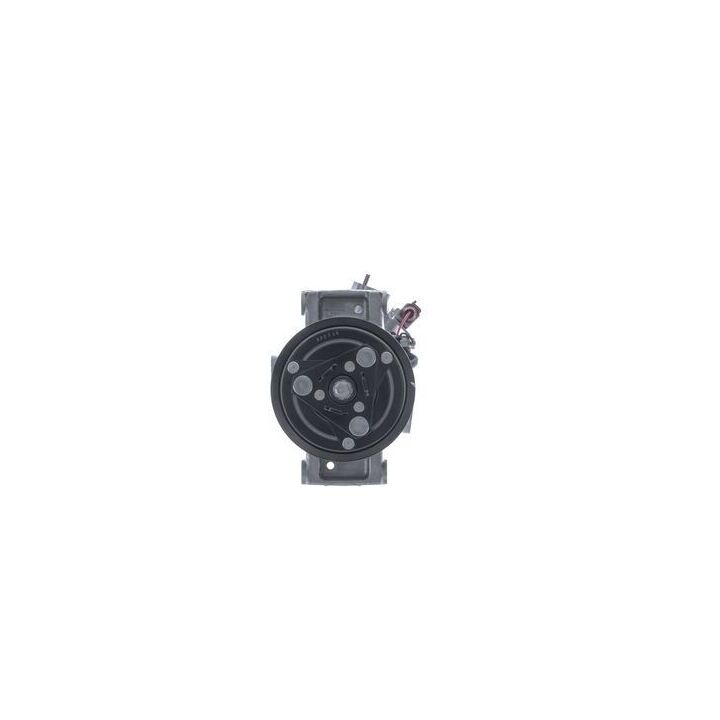

ACP 1570 000P - Compressor, air conditioning
No longer deliverable by the manufacturer
Specifications
| Compressor ID | 6CVC 140 |
| Refrigerant | R 1234yf |
| Refrigerant | R 134a |
| Number of ribs | 6 |
| Belt Pulley Ø | 110 mm |
| Voltage | 12 V |
| Inlet Ø | 28 mm |
| Outlet Ø | 15.35 mm |
| Manufacturer Restriction | MAHLE |
| Manufacturer | MAHLE |
| Number of grooves | 6 |
| Packaging width | 18.50 cm |
| Packaging height | 21.25 cm |
| Packaging length | 29.2 cm |
| Net Weight | 5360 g |
Shipping Details
| Weight | 6.092 Kg |
| Customs Code | 841430 |
| Country of Origin | Hungary |
Shipping rates
Reference Numbers
OE Numbers
CUPRA
Cross-Reference Numbers
AKS DASIS
850401N
AUDI
3Q0816803B
3Q0816803D
3Q0816803E
CUPRA
3Q0816803B
3Q0816803D
DENSO
DCP32082
DCP32083
ELSTOCK
LUCAS
NISSENS
SEAT
3Q0816803
3Q0816803B
3Q0816803D
3Q0816803E
SKODA
3Q0816803
3Q0816803B
3Q0816803D
3Q0816803E
VW
3Q0816803
3Q0816803B
3Q0816803D
3Q0816803E
Fit Vehicles
AUDI
59 vehicles
A1
2018 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| A1 Sportback (GBA) 30 TFSI | 2018-07 - ... | 85 | 999 | ||
| A1 Sportback (GBA) 25 TFSI | 2018-11 - ... | 70 | 999 | ||
| A1 Sportback (GBA) 35 TFSI | 2018-09 - ... | 110 | 1498 | ||
| A1 City Carver (GBH) 25 TFSI | 2019-07 - 2022-06 | 70 | 999 | ||
| A1 City Carver (GBH) 30 TFSI | 2019-07 - 2022-06 | 85 | 999 | ||
| A1 City Carver (GBH) 35 TFSI | 2019-07 - 2022-06 | 110 | 1498 | ||
| A1 Sportback (GBA) 30 TFSI | 2020-09 - ... | 81 | 999 | ||
| A1 City Carver (GBH) 30 TFSI | 2020-09 - 2022-06 | 81 | 999 | ||
| A1 Sportback (GBA) 40 TFSI | 2021-04 - ... | 152 | 1984 | ||
| A1 Allstreet (GBH) 25 TFSI | 2022-07 - ... | 70 | 999 | ||
| A1 Allstreet (GBH) 30 TFSI | 2022-07 - ... | 81 | 999 | ||
| A1 Allstreet (GBH) 35 TFSI | 2022-07 - ... | 110 | 1498 |
A3
2019 - ...
Q2
2016 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| Q2 (GAB, GAG) 30 TDI | 2018-07 - 2020-10 | 85 | 1598 | ||
| Q2 (GAB, GAG) SQ2 TFSI quattro | 2018-08 - ... | 221 | 1984 | ||
| Q2 (GAB, GAG) 1.4 TFSI | 2016-06 - ... | 110 | 150 | 1395 | |
| Q2 (GAB, GAG) 2.0 TDI | 2016-09 - ... | 110 | 150 | 1968 | |
| Q2 (GAB, GAG) 2.0 TDI quattro | 2016-09 - ... | 110 | 150 | 1968 | |
| Q2 (GAB, GAG) 1.0 TFSI | 2016-10 - 2020-10 | 85 | 115 | 999 | |
| Q2 (GAB, GAG) 2.0 TFSI quattro | 2017-05 - ... | 140 | 1984 | ||
| Q2 (GAB, GAG) 30 TFSI | 2018-07 - 2020-10 | 85 | 999 | ||
| Q2 (GAB, GAG) 35 TFSI | 2018-07 - ... | 110 | 1498 | ||
| Q2 (GAB, GAG) 40 TFSI quattro | 2018-09 - ... | 140 | 1984 | ||
| Q2 (GAB, GAG) 35 TDI quattro | 2018-09 - ... | 110 | 1968 | ||
| Q2 (GAB, GAG) 35 TDI | 2016-09 - ... | 110 | 1968 |
Q3
2018 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| Q3 (F3B) 35 TFSI | 2018-08 - ... | 110 | 1498 | ||
| Q3 (F3B) 40 TDI quattro | 2018-10 - ... | 140 | 1968 | ||
| Q3 (F3B) 45 TFSI quattro | 2018-07 - ... | 169 | 1984 | ||
| Q3 (F3B) 35 TDI | 2018-09 - ... | 110 | 1968 | ||
| Q3 (F3B) 35 TDI quattro | 2018-09 - ... | 110 | 1968 | ||
| Q3 (F3B) 40 TFSI quattro | 2018-07 - ... | 140 | 1984 | ||
| Q3 Sportback (F3N) 35 TFSI | 2019-09 - ... | 110 | 1498 | ||
| Q3 Sportback (F3N) 45 TFSI quattro | 2019-06 - ... | 169 | 1984 | ||
| Q3 Sportback (F3N) 35 TDI | 2019-11 - ... | 110 | 1968 | ||
| Q3 Sportback (F3N) 35 TDI quattro | 2019-09 - ... | 110 | 1968 | ||
| Q3 Sportback (F3N) 40 TDI quattro | 2019-07 - ... | 140 | 1968 | ||
| Q3 Sportback (F3N) 40 TFSI quattro | 2019-11 - ... | 140 | 1984 | ||
| Q3 Sportback (F3N) 40 TDI quattro | 2020-09 - ... | 147 | 1968 | ||
| Q3 (F3B) 45 TFSI quattro | 2021-01 - ... | 180 | 1984 | ||
| Q3 Sportback (F3N) 45 TFSI quattro | 2021-01 - ... | 180 | 1984 | ||
| Q3 (F3B) 40 TDI quattro | 2020-11 - ... | 147 | 1968 |
SEAT
45 vehicles
ARONA
2017 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| ARONA (KJ7, KJP) 1.6 TDI | 2017-11 - ... | 70 | 1598 | ||
| ARONA (KJ7, KJP) 1.0 TSI | 2017-07 - ... | 70 | 95 | 999 | |
| ARONA (KJ7, KJP) 1.0 TSI | 2017-07 - ... | 85 | 115 | 999 | |
| ARONA (KJ7, KJP) 1.5 TSI | 2017-07 - ... | 110 | 150 | 1498 | |
| ARONA (KJ7, KJP) 1.6 TDI | 2017-07 - ... | 85 | 115 | 1598 | |
| ARONA (KJ7, KJP) 1.0 TGi | 2018-11 - ... | 66 | 999 | ||
| ARONA (KJ7, KJP) 1.0 TSI | 2020-06 - ... | 81 | 999 |
ATECA
2018 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| ATECA (KH7, KHP) 1.5 TSI | 2018-07 - ... | 110 | 1498 | ||
| ATECA (KH7, KHP) 1.5 TSI 4Drive | 2018-07 - ... | 110 | 1498 |
IBIZA
2017 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| IBIZA V (KJ1, KJG) 1.0 | 2017-07 - ... | 48 | 999 | ||
| IBIZA V (KJ1, KJG) 1.5 TSI | 2017-07 - ... | 110 | 1498 | ||
| IBIZA V (KJ1, KJG) 1.0 | 2017-01 - ... | 55 | 75 | 999 | |
| IBIZA V (KJ1, KJG) 1.0 TSI | 2017-01 - ... | 70 | 95 | 999 | |
| IBIZA V (KJ1, KJG) 1.0 TSI | 2017-01 - ... | 85 | 115 | 999 | |
| IBIZA V (KJ1, KJG) 1.6 TDI | 2017-09 - ... | 70 | 1598 | ||
| IBIZA V (KJ1, KJG) 1.6 TDI | 2017-11 - ... | 59 | 1598 | ||
| IBIZA V (KJ1, KJG) 1.0 TGI | 2017-11 - ... | 66 | 999 | ||
| IBIZA V (KJ1, KJG) 1.6 TDI | 2017-12 - ... | 85 | 1598 | ||
| IBIZA V (KJ1, KJG) 1.0 MPi | 2018-07 - ... | 59 | 999 | ||
| IBIZA V (KJ1, KJG) 1.0 TSI | 2020-06 - ... | 81 | 999 |
LEON
2019 - ...
TARRACO
2018 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| TARRACO (KN2) 2.0 TDI | 2018-09 - ... | 110 | 1968 | ||
| TARRACO (KN2) 2.0 TDI 4Drive | 2018-09 - ... | 110 | 1968 | ||
| TARRACO (KN2) 2.0 TDI 4Drive | 2018-09 - ... | 140 | 1968 | ||
| TARRACO (KN2) 2.0 TSI 4Drive | 2018-11 - ... | 140 | 1984 |
SKODA
40 vehicles
FABIA
2021 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| FABIA IV (PJ3) 1.0 TSI | 2021-06 - ... | 81 | 999 | ||
| FABIA IV (PJ3) 1.0 TSI | 2021-06 - ... | 70 | 999 | ||
| FABIA IV (PJ3) 1.0 MPI | 2021-06 - ... | 59 | 999 |
KAMIQ
2019 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| KAMIQ (NW4) 1.0 TSI | 2019-07 - ... | 70 | 999 | ||
| KAMIQ (NW4) 1.0 TSI | 2019-07 - ... | 85 | 999 | ||
| KAMIQ (NW4) 1.5 TSI | 2019-07 - ... | 110 | 1498 | ||
| KAMIQ (NW4) 1.0 TSI | 2020-08 - ... | 81 | 999 |
KODIAQ
2018 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| KODIAQ (NS7, NV7, NS6) 1.5 TSI | 2018-07 - ... | 110 | 1498 | ||
| KODIAQ (NS7, NV7, NS6) 1.5 TSI 4x4 | 2018-07 - ... | 110 | 1498 |
OCTAVIA
2019 - ...
SCALA
2019 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| SCALA (NW1) 1.0 TSI | 2019-02 - ... | 85 | 999 | ||
| SCALA (NW1) 1.5 TSI | 2019-02 - ... | 110 | 1498 | ||
| SCALA (NW1) 1.0 TSI | 2019-02 - ... | 70 | 999 | ||
| SCALA (NW1) 1.0 TSI | 2020-08 - ... | 81 | 999 |
SUPERB
2015 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| SUPERB III (3V3) 1.6 TDI | 2015-03 - ... | 88 | 120 | 1598 | |
| SUPERB III Estate (3V5) 1.6 TDI | 2015-03 - ... | 88 | 120 | 1598 | |
| SUPERB III (3V3) 1.5 TSI | 2017-02 - ... | 110 | 1498 | ||
| SUPERB III Estate (3V5) 1.5 TSi | 2017-02 - ... | 110 | 1498 | ||
| SUPERB III Estate (3V5) 2.0 TDI | 2020-07 - ... | 90 | 1968 |
VW
111 vehicles
ARTEON
2017 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| ARTEON (3H7, 3H8) 2.0 TDI | 2017-03 - ... | 110 | 150 | 1968 | |
| ARTEON SHOOTING BRAKE (3H9) 2.0 TDI | 2020-09 - ... | 110 | 1968 | ||
| ARTEON (3H7, 3H8) 1.5 TSI | 2017-11 - ... | 110 | 1498 | ||
| ARTEON SHOOTING BRAKE (3H9) 1.5 TSi | 2020-08 - ... | 110 | 1498 |
CADDY
2020 - ...
CALIFORNIA
2019 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| CALIFORNIA T6 Camper (SGC, SGG, SHC) 2.0 TDI | 2019-07 - ... | 81 | 1968 |
GOLF
2015 - ...
MULTIVAN
2019 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| MULTIVAN T6 (SGF, SGM, SGN, SHM, SHN) 2.0 TDI | 2019-07 - ... | 81 | 1968 |
PASSAT
2014 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| PASSAT ALLTRACK B8 Variant (3G5, CB5) 2.0 TSI 4motion | 2018-08 - ... | 200 | 1984 | ||
| PASSAT B8 (3G2, CB2) 2.0 TDI | 2014-11 - ... | 110 | 150 | 1968 | |
| PASSAT B8 (3G2, CB2) 1.8 TSI | 2015-02 - ... | 132 | 180 | 1798 | |
| PASSAT B8 (3G2, CB2) 1.6 TDI | 2014-08 - ... | 88 | 120 | 1598 | |
| PASSAT B8 (3G2, CB2) 1.5 TSI | 2018-08 - ... | 110 | 1498 | ||
| PASSAT B8 Variant (3G5, CB5) 1.5 TSI | 2018-08 - ... | 110 | 1498 | ||
| PASSAT B8 (3G2, CB2) 2.0 TSI 4motion | 2018-09 - ... | 200 | 1984 | ||
| PASSAT B8 Variant (3G5, CB5) 2.0 TSI 4motion | 2018-09 - ... | 200 | 1984 | ||
| PASSAT B8 Variant (3G5, CB5) 1.6 TDI | 2014-08 - ... | 88 | 120 | 1598 | |
| PASSAT B8 Variant (3G5, CB5) 1.8 TSI | 2015-02 - ... | 132 | 180 | 1798 | |
| PASSAT B8 Variant (3G5, CB5) 2.0 TDI | 2014-11 - ... | 110 | 150 | 1968 |
POLO
2017 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| POLO VI (AW1, BZ1, AE1) 1.0 TSI | 2017-06 - ... | 70 | 95 | 999 | |
| POLO VI (AW1, BZ1, AE1) 1.0 TSI | 2020-07 - ... | 81 | 999 |
T-CROSS
2018 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| T-CROSS (C11) 1.0 TSi | 2018-12 - ... | 70 | 999 | ||
| T-CROSS (C11) 1.0 TSi | 2018-12 - ... | 85 | 999 | ||
| T-CROSS (C11) 1.0 TSI | 2020-06 - ... | 81 | 999 | ||
| T-CROSS (C11) 1.5 TSI | 2020-01 - ... | 110 | 1498 |
T-ROC
2017 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| T-ROC (A11, D11) 1.5 TSI | 2017-11 - ... | 110 | 1498 | ||
| T-ROC (A11, D11) 1.0 TSI | 2017-07 - 2020-11 | 85 | 999 | ||
| T-ROC (A11, D11) 1.5 TSI 4motion | 2018-05 - 2019-11 | 110 | 1498 | ||
| T-ROC Convertible (AC7, AC8) 1.0 TSI | 2019-12 - 2020-10 | 85 | 999 | ||
| T-ROC Convertible (AC7, AC8) 1.5 TSI | 2019-12 - ... | 110 | 1498 |
TAIGO
2021 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| TAIGO (CS1) 1.0 TSI | 2021-09 - ... | 70 | 999 | ||
| TAIGO (CS1) 1.0 TSI | 2021-09 - ... | 81 | 999 |
TIGUAN
2017 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TSI 4motion | 2017-03 - ... | 132 | 1984 | ||
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TSI 4motion | 2017-07 - ... | 162 | 1984 | ||
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TSI 4motion | 2018-09 - ... | 140 | 1984 | ||
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TDI 4motion | 2020-06 - ... | 147 | 1968 | ||
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TSI 4motion | 2020-09 - ... | 180 | 1984 | ||
| TIGUAN ALLSPACE (BW2, BJ2) 1.4 TSI | 2017-06 - ... | 110 | 150 | 1395 | |
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TDI | 2017-06 - ... | 110 | 150 | 1968 | |
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TDI 4motion | 2017-06 - ... | 110 | 150 | 1968 | |
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TDI 4motion | 2017-06 - 2021-07 | 140 | 190 | 1968 | |
| TIGUAN ALLSPACE (BW2, BJ2) 2.0 TDI 4motion | 2017-06 - 2020-09 | 176 | 240 | 1968 | |
| TIGUAN ALLSPACE (BW2, BJ2) 1.5 TSI | 2018-09 - ... | 110 | 1498 |
TOURAN
2015 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| TOURAN (5T1) 1.5 TSI | 2018-11 - ... | 110 | 1498 | ||
| TOURAN (5T1) 2.0 TDI | 2020-11 - ... | 90 | 1968 | ||
| TOURAN VAN (5T1) 2.0 TDI | 2020-11 - ... | 90 | 1968 | ||
| TOURAN VAN (5T1) 2.0 TDI | 2020-11 - ... | 110 | 1968 | ||
| TOURAN (5T1) 2.0 TDI | 2015-05 - ... | 110 | 150 | 1968 |
TRANSPORTER
2018 - ...
| Body | Model | Produced | KW | HP | CCM |
|---|---|---|---|---|---|
| TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ) 2.0 TDI | 2019-07 - ... | 81 | 1968 | ||
| TRANSPORTER T6 Van (SGA, SGH, SHA, SHH) 2.0 TDI | 2019-07 - ... | 81 | 1968 | ||
| TRANSPORTER T6 Van (SGA, SGH, SHA, SHH) 2.0 TDI | 2019-10 - ... | 66 | 1968 | ||
| TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ 2.0 TDI | 2019-07 - ... | 81 | 1968 | ||
| TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ 2.0 TDI | 2019-10 - ... | 66 | 1968 | ||
| TRANSPORTER T6 Van (SGA, SGH, SHA, SHH) 2.0 TDI | 2018-08 - ... | 146 | 1968 | ||
| TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ 2.0 TDI | 2019-08 - ... | 146 | 1968 | ||
| TRANSPORTER T6 Platform/Chassis (SFD, SFE, SFL, SFZ, SJD, SJ 2.0 TDI 4motion | 2019-08 - ... | 146 | 1968 | ||
| TRANSPORTER T6 / CARAVELLE T6 Bus (SGB, SGJ, SHB, SHJ) 2.0 TDI | 2019-10 - ... | 66 | 1968 |
Alternatives
€263.01
Dispatch on next business day
€215.32
Dispatch on next business day
€208.80
Dispatch on next business day
€323.06
Dispatch on next business day
€292.30
Dispatch on next business day
